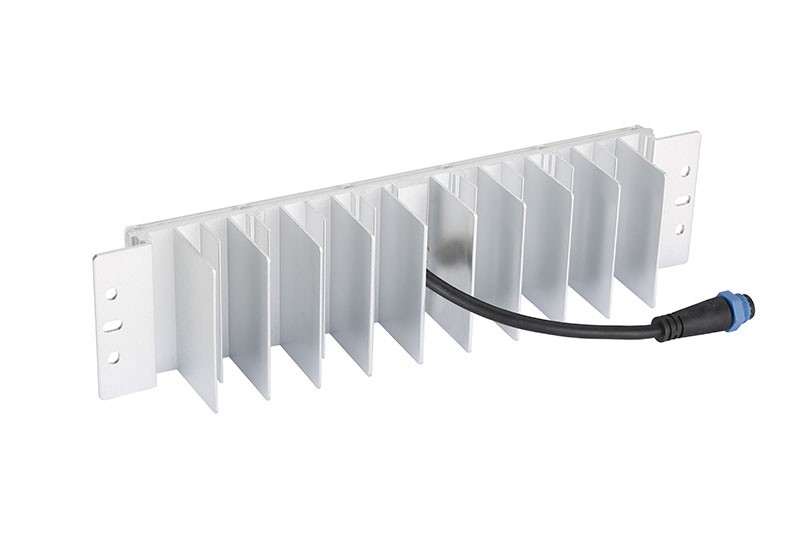

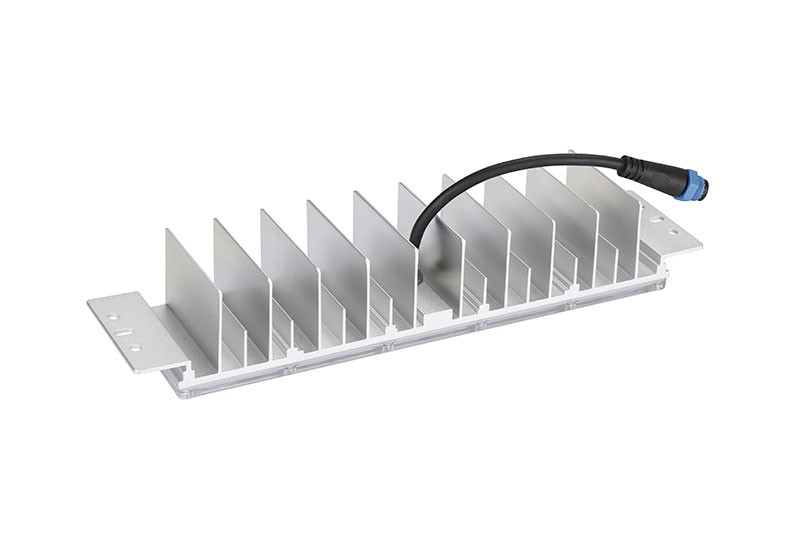

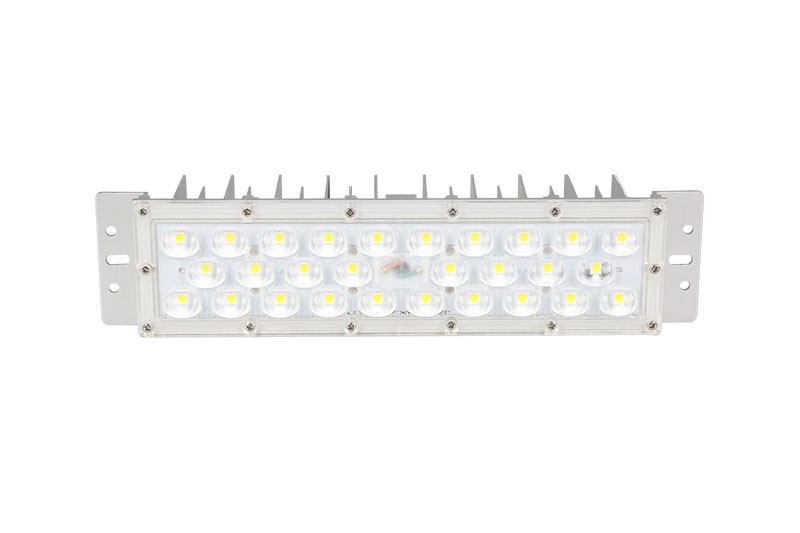

High quality aluminium heat sink with 5050 LED, various beam angles suitable for road lighting and public area lighting.
✔️ High efficiency 5050 LED
✔️ Type I,II,II-M,III
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 30W-60W power range
✔️ 190lm/w max
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
190-160lm/w |
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
190-160Lm/w(+-5%)
Nominal Voltage
DC46V

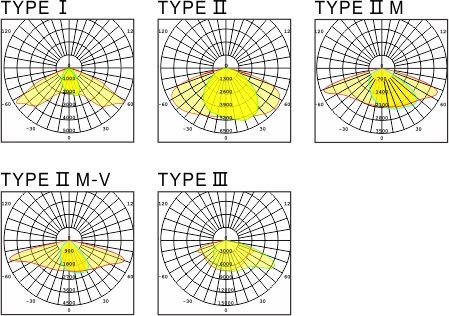

Beam Angle
Type I,II,II-M,III
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
70,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

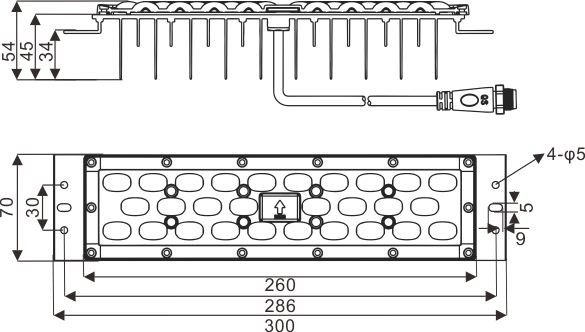

Fixture Dimension
300x70x54mm
N.W.
0.48KG
Certificates
CE,Rohs,LM-80
