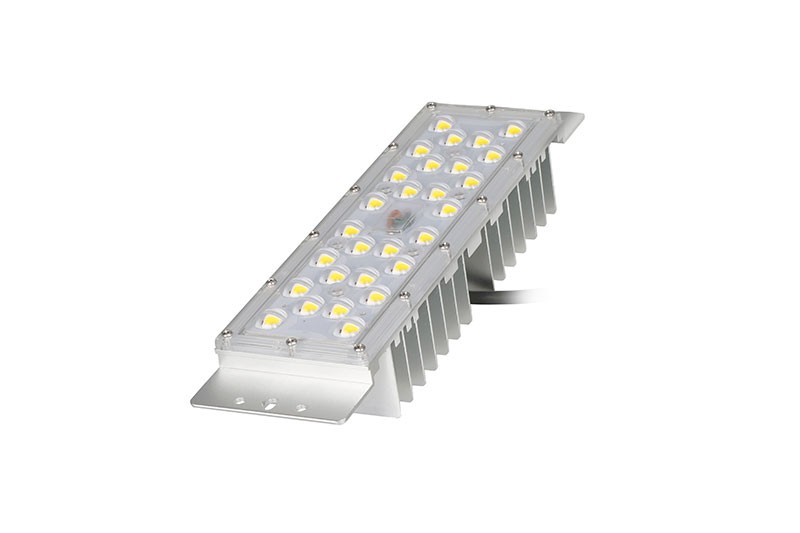

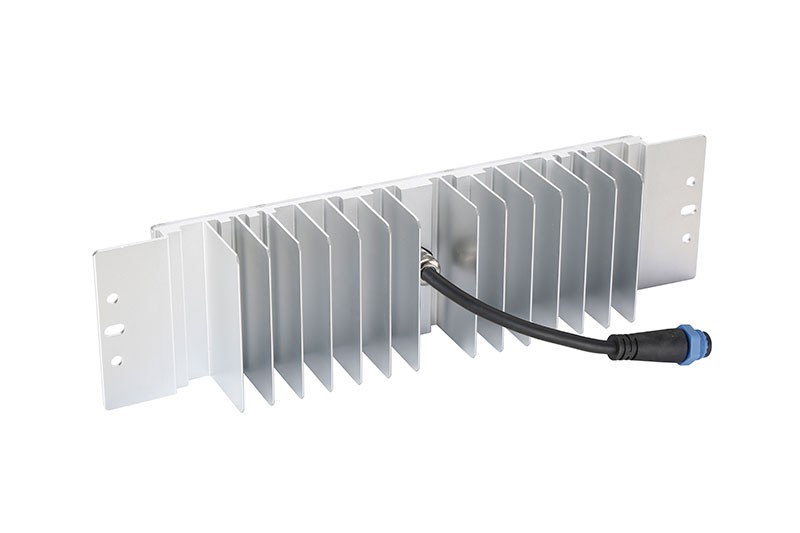

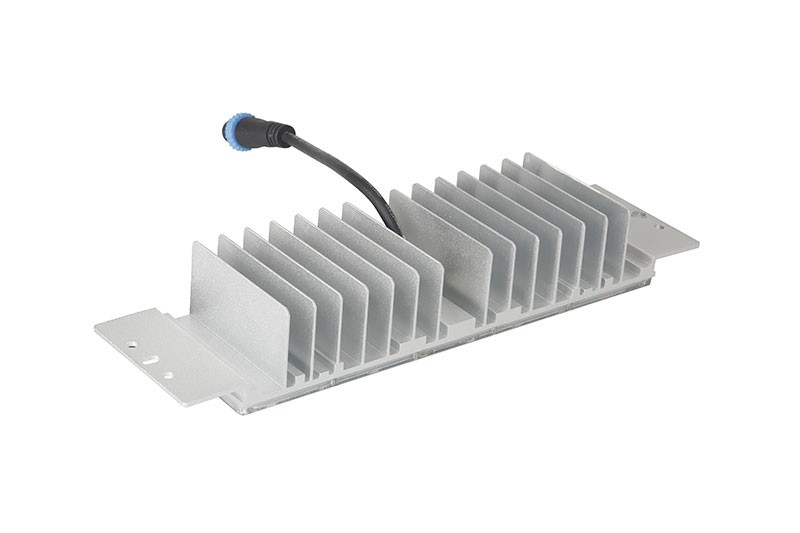

LED Module

LY-MSL5028-75mm

Main features:

High quality aluminium heat sink with 5050 LED, various beam angles suitable for road lighting and public area lighting.


✔️ High efficiency 5050 LED

✔️ 150x70°,TYPE II-M

✔️ Sliver heat sink color

✔️ M15 connector

✔️ 30W-60W power range

✔️ 190lm/w max


     IK10

    IP66

     years

    >Ra70

    30-60W

    190-160lm/w

Product parameters

Electrical Specifications

  • Nominal Wattage

    30W-60W

  • Lumen Efficiency

    190-160Lm/w(+-5%)

  • Nominal Voltage

    DC46V

  • Beam Angle

    150x70°,TYPE II-M

  • LED Type

    SMD 5050

  • CCT

    3000K-6000K

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66

  • Lumen Maintenance

    70,000 hours - L70

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    300x75x50mm

  • N.W.

    0.52KG

  • Certificates

    CE,Rohs,IP66,LM-80


Photometric Specifications

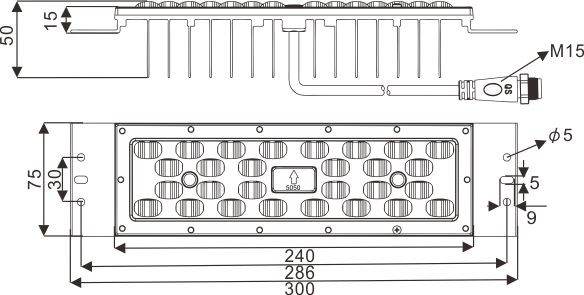

Dimension
