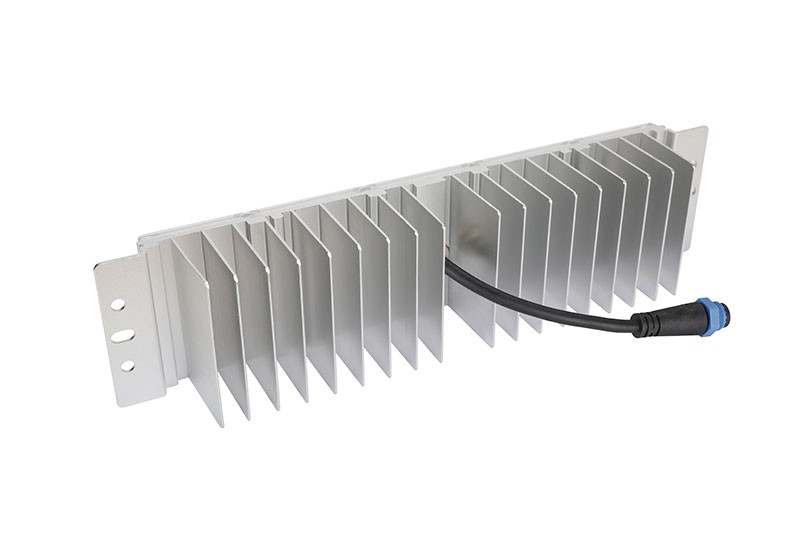

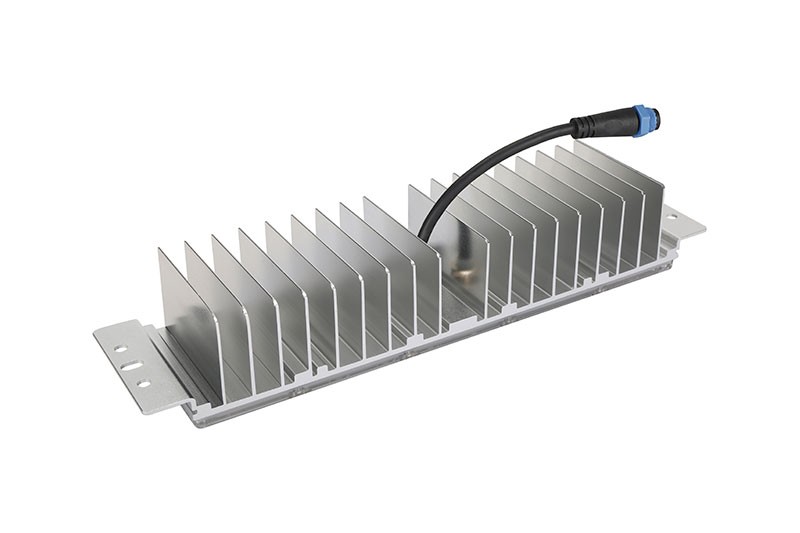

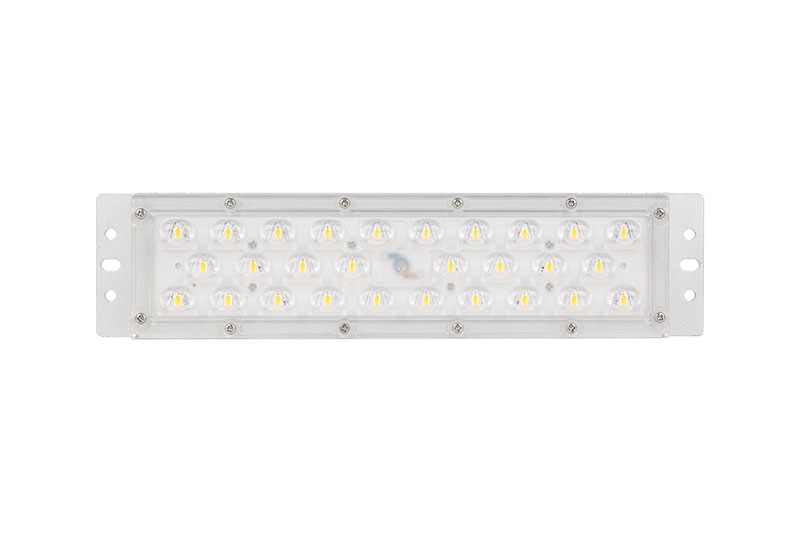

High quality aluminium heat sink with 5050 LED, various beam angles suitable for billboard advertising, road lighting, sport field and area lighting.
✔️High efficiency 5050 LED
✔️Type I,II,III,IV,V,30°,60°,90°
✔️Sliver heat sink color
✔️M15 connector
✔️30-60W power range
✔️190lm/w max
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
190-160lm/w |
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
160-190Lm/w(+-5%)
Nominal Voltage
DC46V

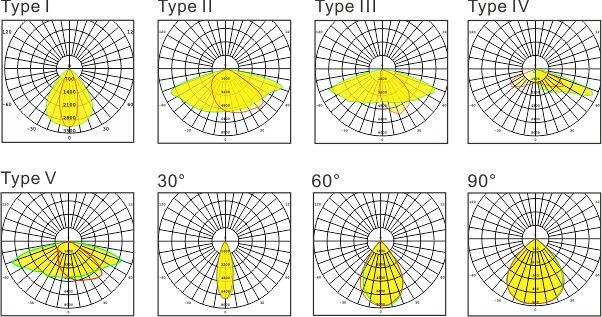

Beam Angle
Type I,II,III,IV,V,,30°,60°,90°
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
70,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

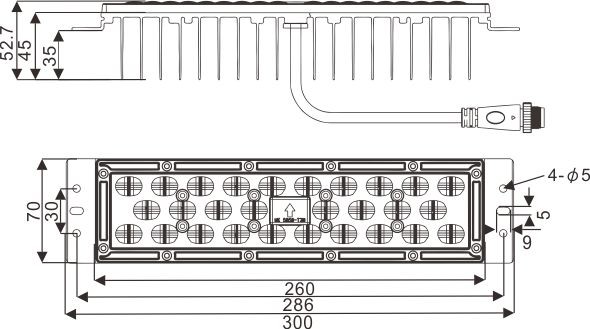

Fixture Dimension
300x70x52.7mm
N.W.
0.47KG
Certificates
LM-80
