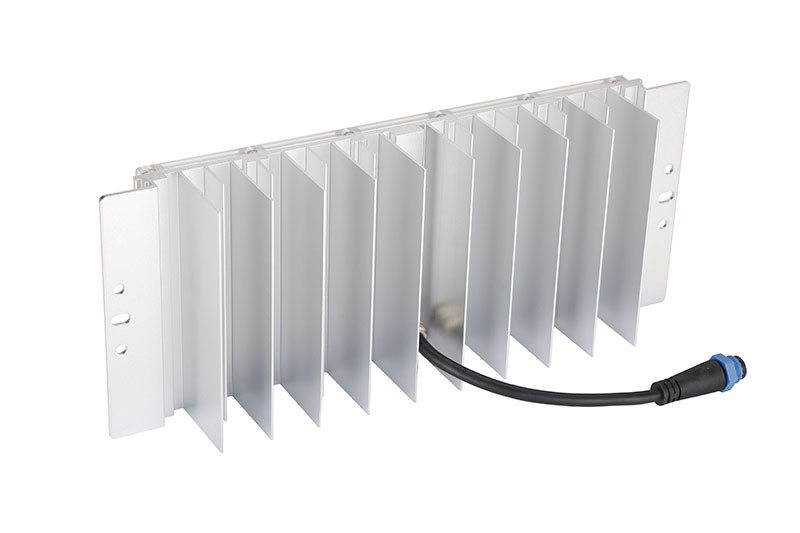

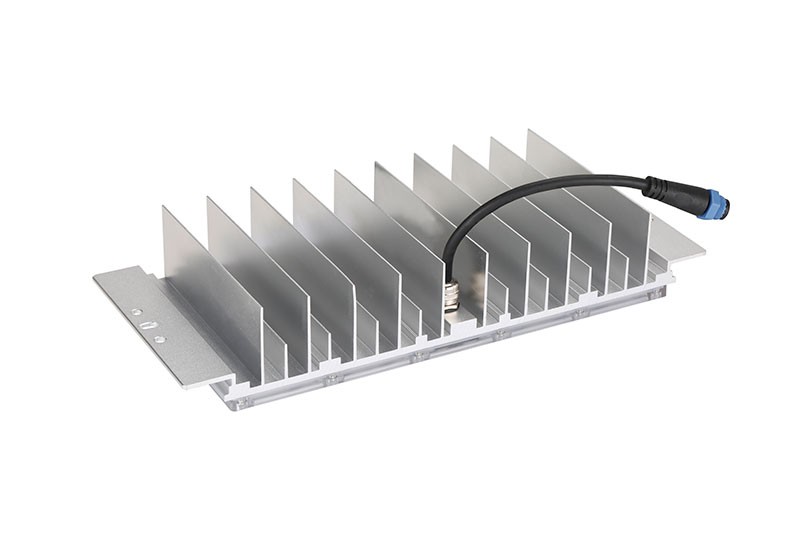

High quality aluminium heat sink with 5050 LED, various beam angles suitable for road lighting and public area lighting.
✔️ High efficiency 5050 LED
✔️ 120x50°,145x100°,150x70°,Type II-M,III,IV,V
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 50W-100W power range
✔️ 200lm/w max
IK10 |
IP66 |
years |
>Ra70 |
50-100W |
190-150lm/w |
Electrical Specifications
Nominal Wattage
50W-100W.
Lumen Efficiency
190-150Lm/w(+-5%)
Nominal Voltage
DC46V

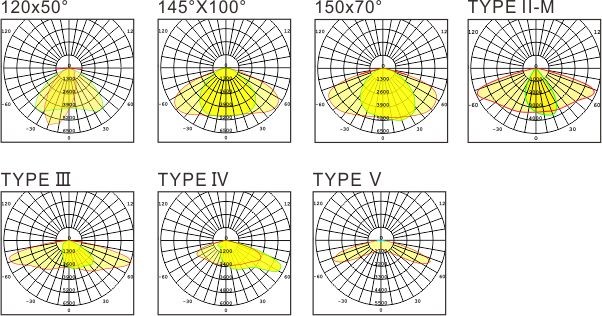

Beam Angle
120x50°,145x100°,150x70°,Type II-M,III,IV,V
LED Type
SMD 5050
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
70,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

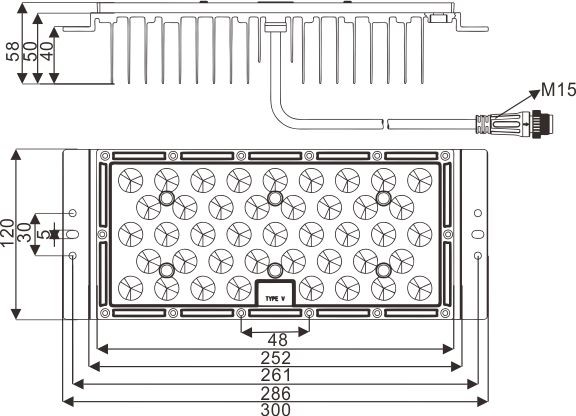

Fixture Dimension
300x120x58mm
N.W.
1.0KG
Certificates
CE,Rohs,LM-80
