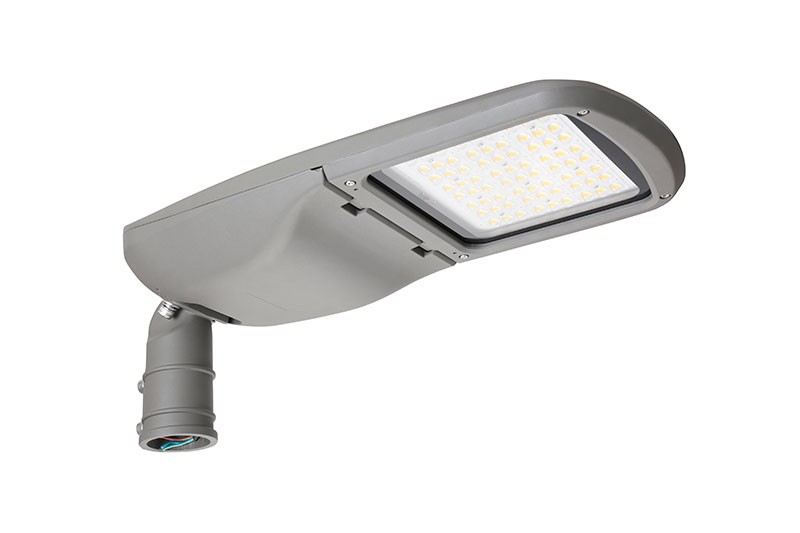

LED Street Light

LY-L29-80

Main features:

L29 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-200W. With 4mm tempered glass and high efficiency 5050 LEDs.


✔️ Adjustable spigots

✔️ Type II, II-M, III, III-S, III-M, III-L, IV-S

✔️ Die-cast aluminium housing

✔️ NEMA socket available

✔️ 60W-80W power range

✔️ 5 Years Warranty



     IK10

    IP66

     years

    Ra>70

    80W

    170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    60W-80W

  • Lumen Efficiency

    150-170Lm/w

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type II, II-M, III, III-S, III-M, III-L, IV-S

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    102,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    699x279x122 mm

  • Fixture Weight

    6.2kg

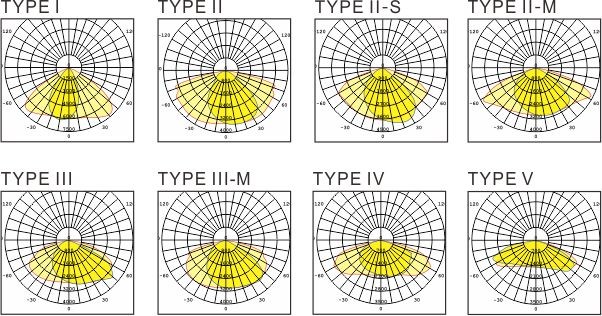

Photometric Specifications

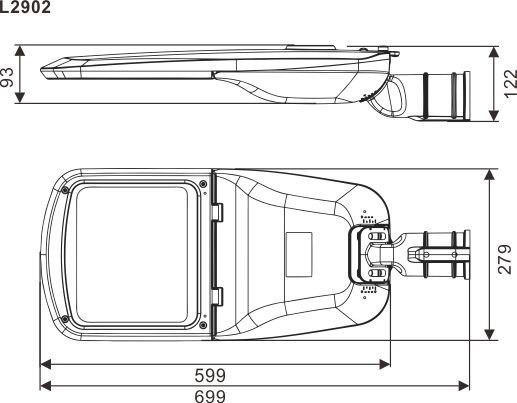

Dimension
