LED Street Light

LY-L29-30

Main features:

L29 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-200W. With 4mm tempered glass and high efficiency 5050 LEDs.


✔️ Adjustable spigots

✔️ Type I,II,II-S,II-M,III,III-M,IV,V

✔️ Die-cast aluminium housing

✔️ NEMA socket available

✔️ 20W-30W power range

✔️ 5 Years Warranty



     IK10

    IP66

     years

    Ra>70

    30W

    140-170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    20W-30W

  • Lumen Efficiency

    140-170Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type I,II,II-S,II-M,III,III-M,IV,V

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 88%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    102,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    606x231x122 mm

  • Fixture Weight

    4.6kg

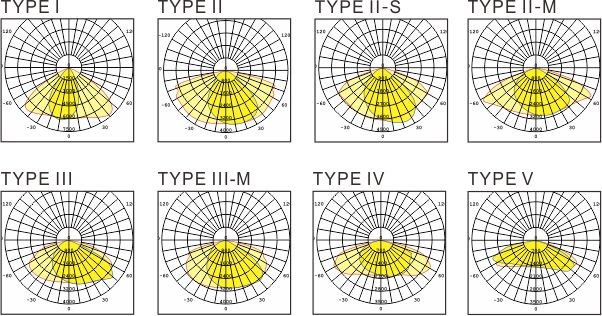

Photometric Specifications

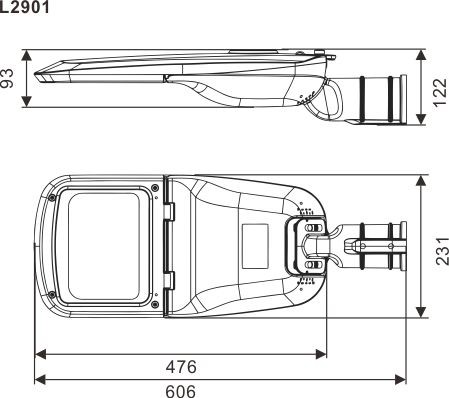

Dimension
