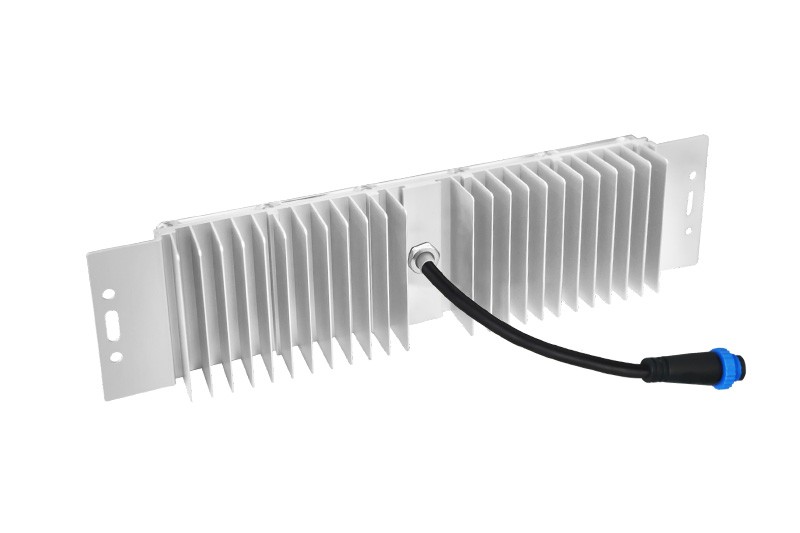

High quality aluminium heat sink with 3030 LED, various beam angles suitable for road lighting and public area lighting.
✔️ High efficiency 3030 LED
✔️ 150*90°
✔️ Sliver heat sink color
✔️ M15 connector
✔️ 30W-60W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
30-60W |
165-155lm/w |
Electrical Specifications
Nominal Wattage
30W-60W
Lumen Efficiency
165-155Lm/w(+-5%)
Nominal Voltage
DC36/48V

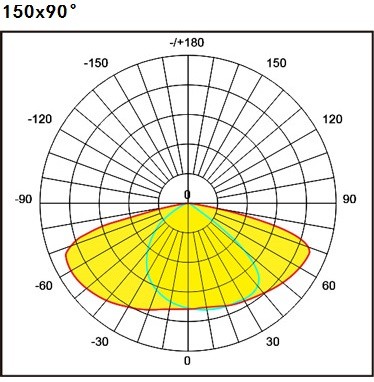

Beam Angle
150*90°
LED Type
SMD 3030 64PCS
CCT
3000K-6000K
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66
Lumen Maintenance
50,000 hours - L70
Heat Radiator
Aluminum alloy
Lens
PC

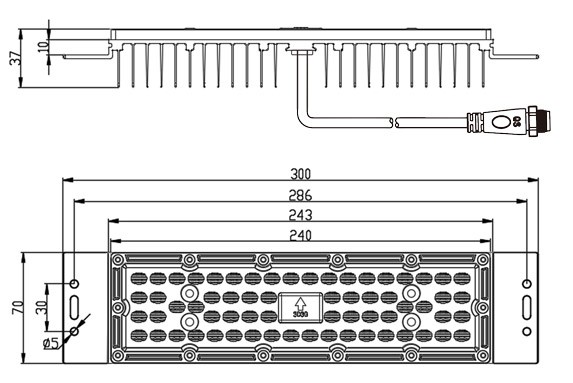

Fixture Dimension
300*70*37mm
N.W.
0.42KG
Certificates
CE,Rohs,LM-80
