LED Module

LY-M18B

Main features:

High quality aluminium heat sink with 3030 LED, various beam angles suitable for road lighting and public area lighting.


✔️ High efficiency 3030 LED

✔️ 150*80°(Vertical),150*85°,140*70°

✔️ Sliver heat sink color

✔️ M15 connector

✔️ 30W-60W power range

✔️ 5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    30-60W

    160-150lm/w

Product parameters

Electrical Specifications

  • Nominal Wattage

    30W-60W

  • Lumen Efficiency

    160-150Lm/w(+-5%)

  • Nominal Voltage

    DC36V/48V

  • Beam Angle

    150*80°(Vertical),150*85°,140*70°

  • LED Type

    SMD 3030 60PCS

  • CCT

    3000K-6000K

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66

  • Lumen Maintenance

    50,000 hours - L70

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    300*70*34.5mm

  • N.W.

    0.47KG

  • Certificates

    CE,Rohs,LM-80


Photometric Specifications

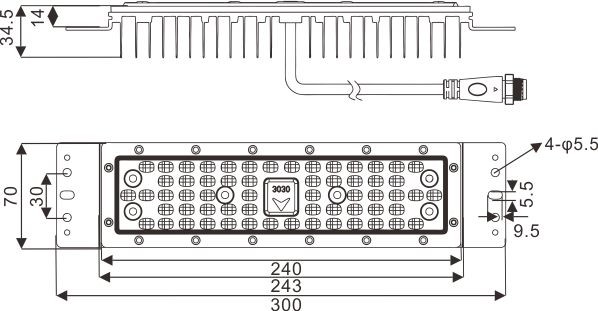

Dimension
