LED Tunnel Light

LY-V26-02

Main features:

V26 LED tunnel light is die-cast aluminum design, it is a very economical and practical lamp specially for tunnel lighting. The ultra-high efficiency lens design makes the lighting effect more uniform and improves the utilization rate of light flux.

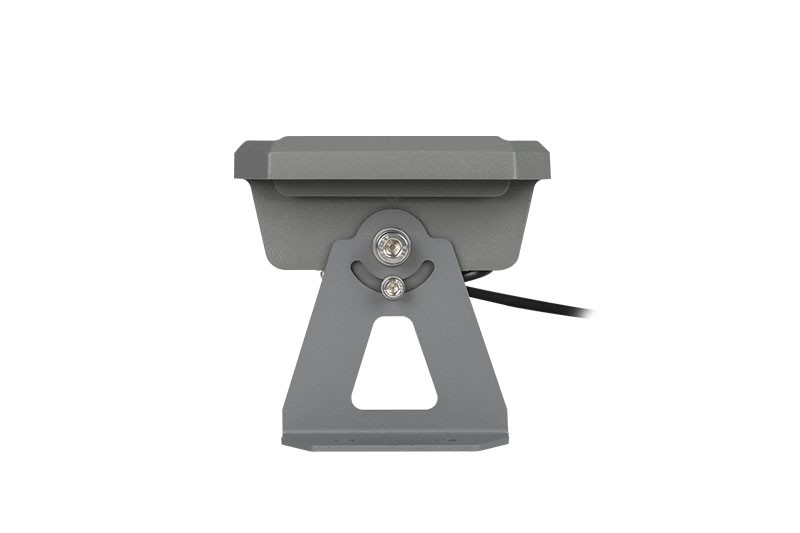

✔️±60° adjustable bracket

✔️145x70°/145x80° ideal beam angle for tunnel lighting

✔️Easy installation for wall amount

✔️New cost effective design

✔️100W per module

✔️5 Years Warranty



 IK10

IP66

 years

Ra>70

120-200W

150lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    200W

  • Lumen Efficiency

    150Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    145x70°/145x80°

  • Optimal Operating Temperature

    40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Die-cast Aluminum

  • Lens

    PC

  • Fixture Dimension

    504x126x122mm

  • Fixture Weight

    2.9kg

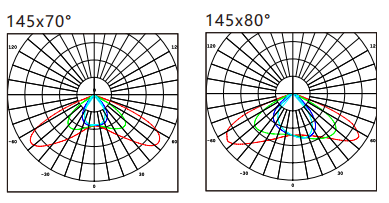

Photometric Specifications

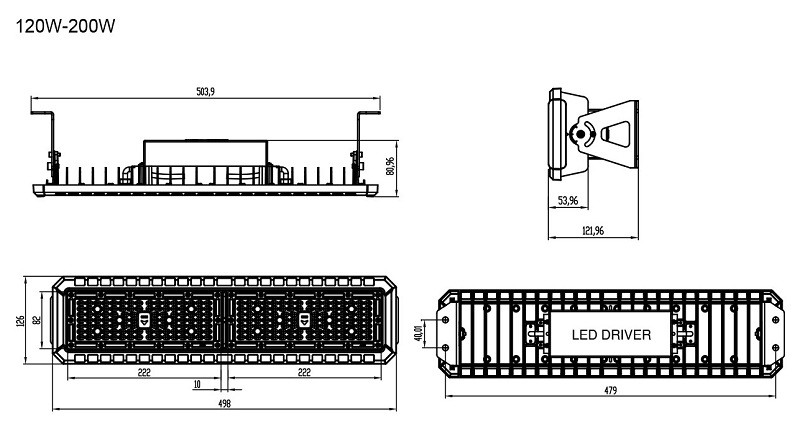

Dimension
