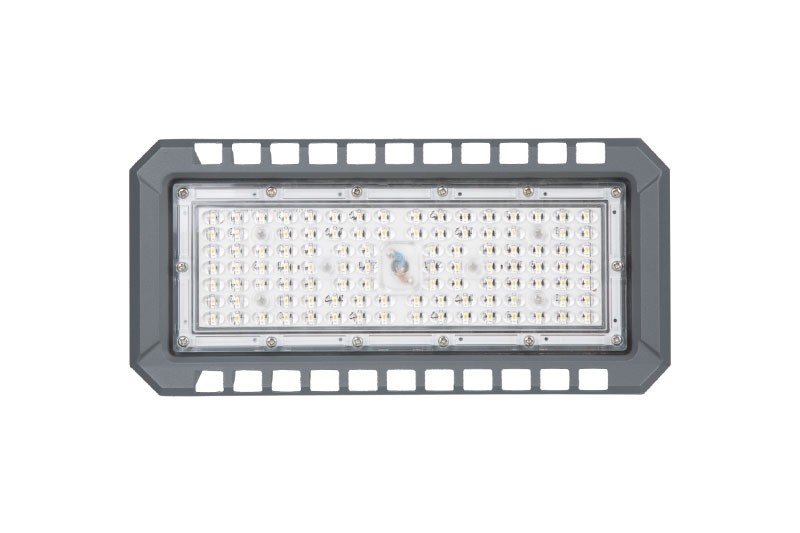

LED Tunnel Light

LY-V26-01

Main features:

V26 LED tunnel light is die-cast aluminum design, it is a very economical and practical lamp specially for tunnel lighting. The ultra-high efficiency lens design makes the lighting effect more uniform and improves the utilization rate of light flux.

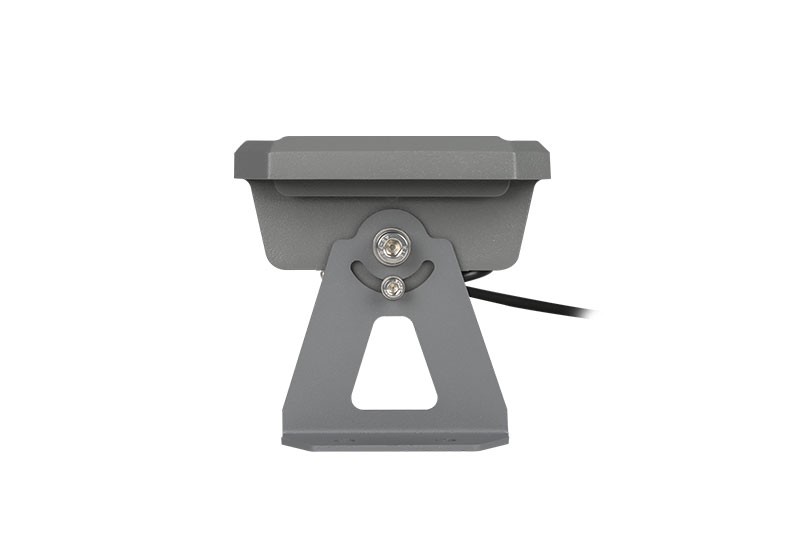

✔️±60° adjustable bracket

✔️145x70°/145x80° ideal beam angle for tunnel lighting

✔️Easy installation for wall amount

✔️New cost effective design

✔️100W per module

✔️5 Years Warranty


 IK10

IP66

 years

Ra>70

60-100W

150lm/w


    LED Lighting Controls

    Product parameters

    Electrical Specifications

    • Nominal Wattage

      100W

    • Lumen Efficiency

      150Lm/w(±5%)

    • Nominal Voltage

      AC 100-277V, 50/60Hz

    • Beam Angle

      145x70°/145x80°

    • Optimal Operating Temperature

      40°C to +50°C

    • Driver Efficiency

      > 90%

    • CRI

      Ra>70/Ra>80

    Mechanical Specifications

    • Ratings

      IP66 | IK10

    • Lumen Maintenance

      72,000 hours - L70(9K)

    • Heat Radiator

      Die-cast Aluminum

    • Lens

      PC

    • Fixture Dimension

      272x126x122mm

    • Fixture Weight

      1.46kg


    Photometric Specifications

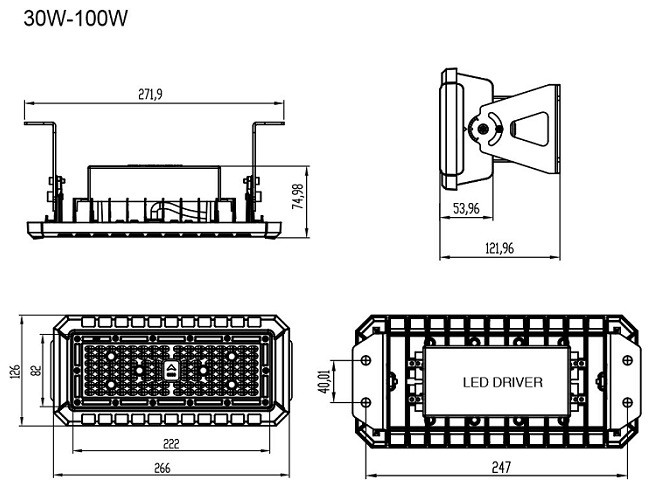

    Dimension
