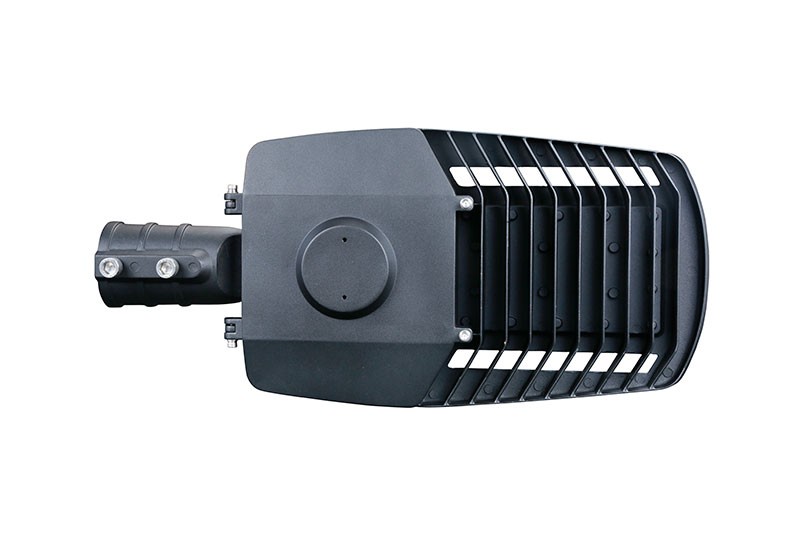

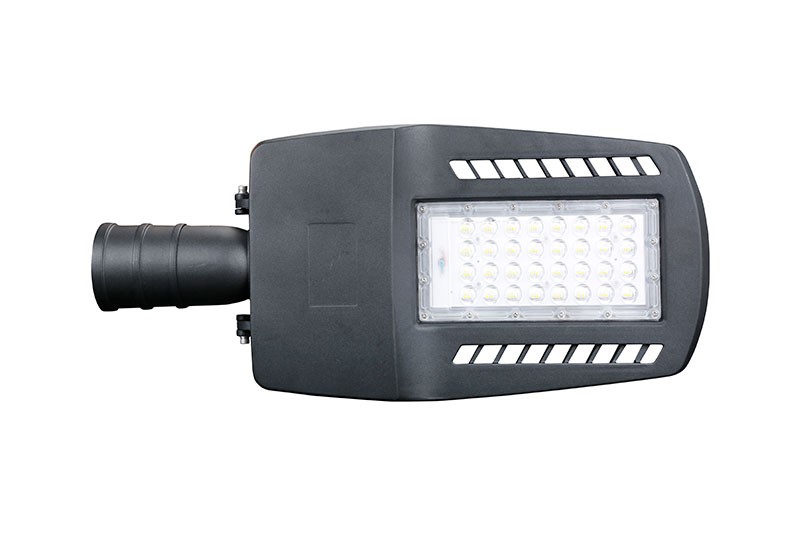

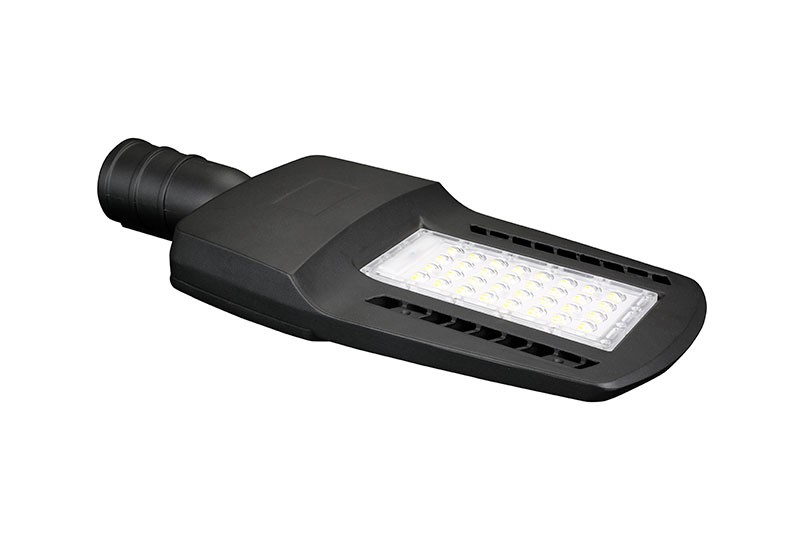

L60 ultra-thin design street lighting, is economic and cost-saving product from 30W to 180W for urban road lighting.
✔️ Fixed spigots
✔️ Type III-M
✔️ Black housing color
✔️ NEMA socket available
✔️ 80W-120W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
120W |
150lm/w |
Electrical Specifications
Nominal Wattage
80W-120W
Lumen Efficiency
150Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type III
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
50.000 hours - L70(12K)
Heat Radiator
Aluminum alloy
Lens
PC

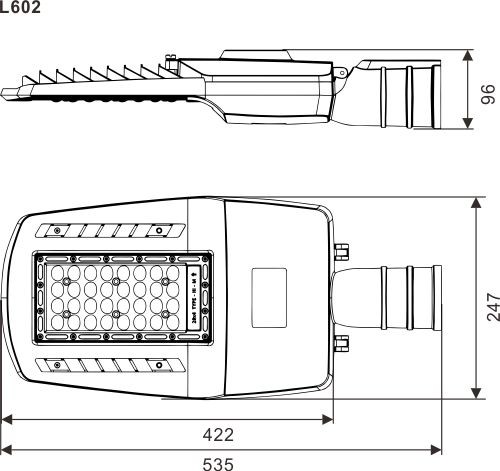

Fixture Dimension
535x247x96mm
Fixture Weight
3.1kg
