LED Street Light

LY-L603-150

Main features:

L60 ultra-thin design street lighting, is economic and cost-saving product from 30W to 180W for urban road lighting.


✔️ Fixed spigots

✔️ Type III-M

✔️ Black housing color

✔️ NEMA socket available

✔️ 150W-180W power range

✔️ 5 Years Warranty



     IK10

    IP66

     years

    >Ra70

    150W

    150lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    150W-180W

  • Lumen Efficiency

    150Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type III

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    616x247x96mm

  • Fixture Weight

    3.6kg


Photometric Specifications

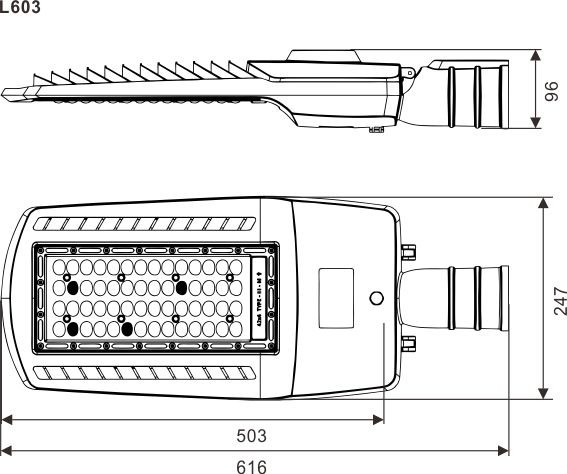

Dimension
