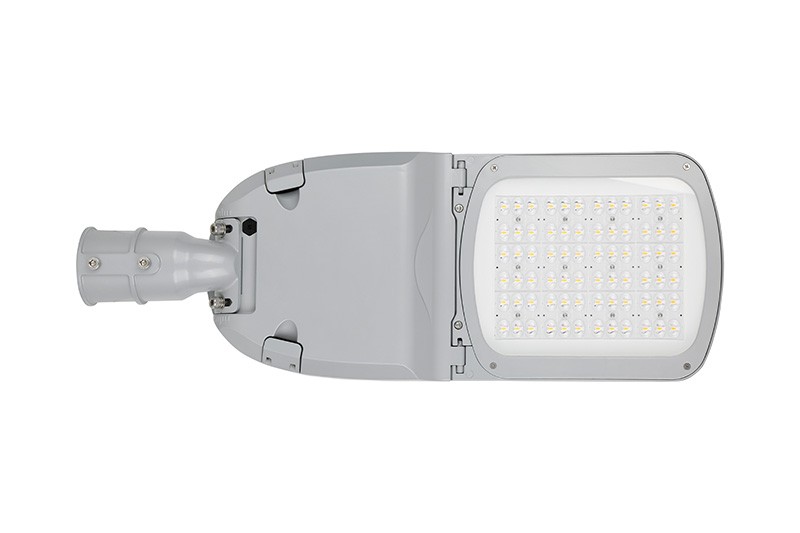

LED Street Light

LY-L36(300-350W)

Main features:

L36 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-350W. Entirely tool-free maintenance design.


✔️ Adjustable spigots ±15°

✔️ Type II, II-M, III, III-S, III-M, III-L, IV-S

✔️ Die-cast aluminium housing

✔️ Pole diameter 35/45/48/60/76mm

✔️ 280W-350W power range

✔️ 5 Years Warranty



     IK10

    IP66

     years

    Ra>70

    160-250W

    170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    280-350W

  • Lumen Efficiency

    150-170Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type II, II-M, III, III-S, III-M, III-L, IV-S

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    101,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    790x300x128mm

  • Pole Diameter

    35/45/48/60/76mm

  • Fixture Weight

    9.7kg


Photometric Specifications

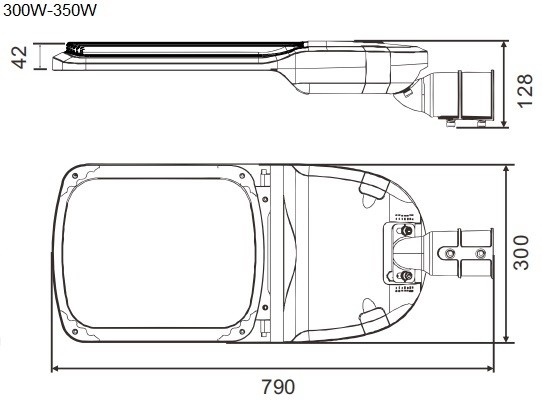

Dimension
