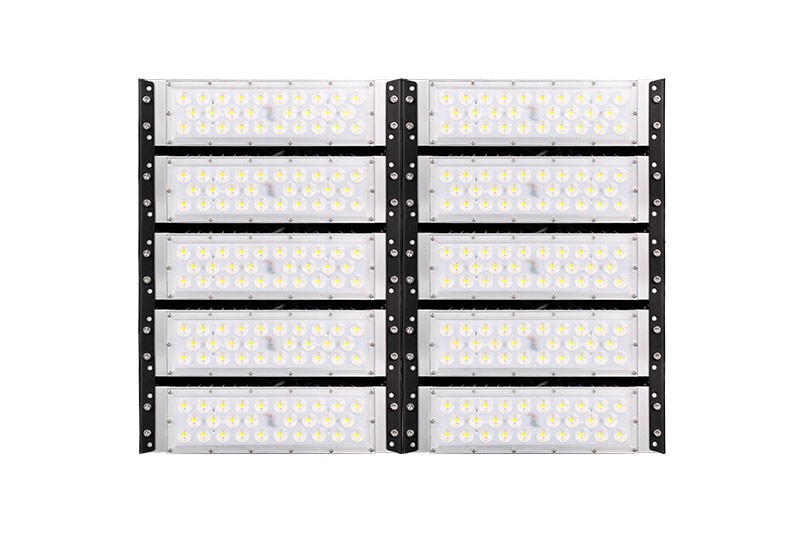

V5 series LED modular flood light come with high luminous efficiency suitable for sport area lighting, high bay lighting, tunnel lighting etc.
✔️150° adjustable bracket
✔️25°,40°,60°,90°,145x100°,Type V
✔️Independent module design
✔️CE ROHS certificate
✔️440W-500W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
500W |
175lm/w |
Electrical Specifications
Nominal Wattage
500W
Lumen Efficiency
175Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz

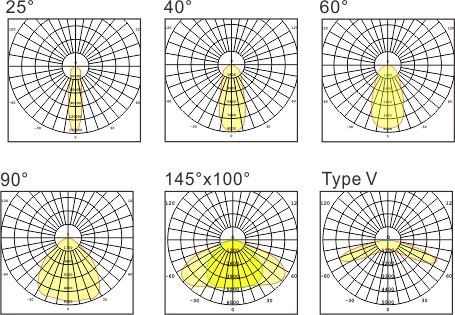

Beam Angle
25°,40°,60°,90°,145x100°,Type V
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
72,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

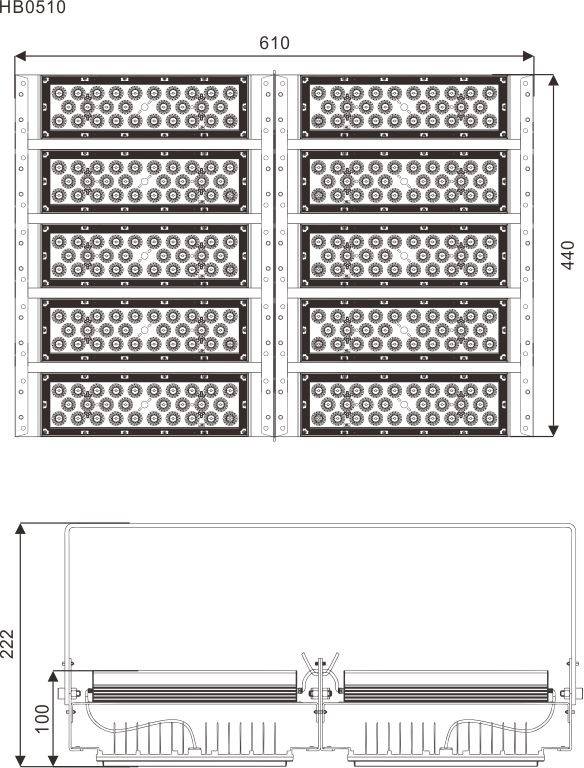

Fixture Dimension
610x440x222mm
Fixture Weight
12.4Kg
