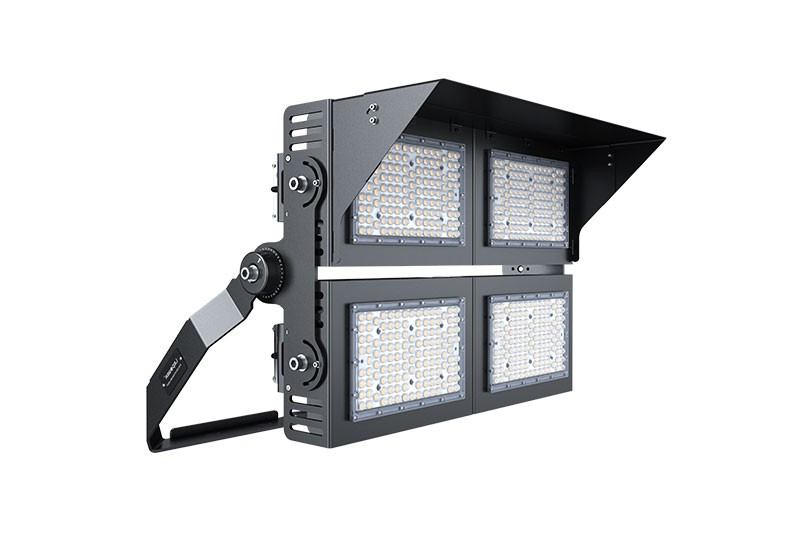

V18 LED stadium lamp is a patented Fin heat sink design product,with high efficiency LED,various of beam angle for different professional sports court lighting application.
✔️270° adjustable bracket
✔️10°,15°,24°,36°, 60°,90°,30x45°,G50°
✔️Independent module design
✔️CE ROHS IP66 IK10 certificate
✔️1000W-1200W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
1200W |
110&160Lm/w |
Mechanical Specifications
Nominal Wattage
1200W
Lumen Efficiency
110Lm/w(10°)&160Lm/w(15/24/36/60/90/30X45°)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
10°,15°,24°,36°,60°,90°,30X45°,G50°
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
72,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

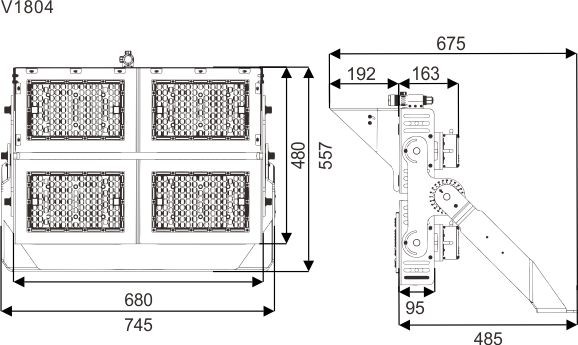

Fixture Dimension
745x557x163mm
Fixture Weight
25Kg
