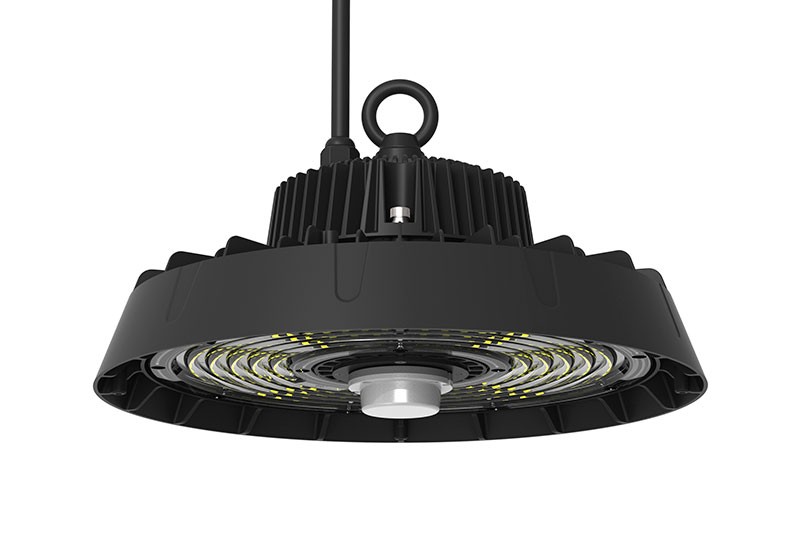

LED Highbay Light

LY-S2-200

Main features:

S2 UFO high bay light series from 100W-240W. Genius Classic outlook design with excellent system efficiency up to 165lm/w.

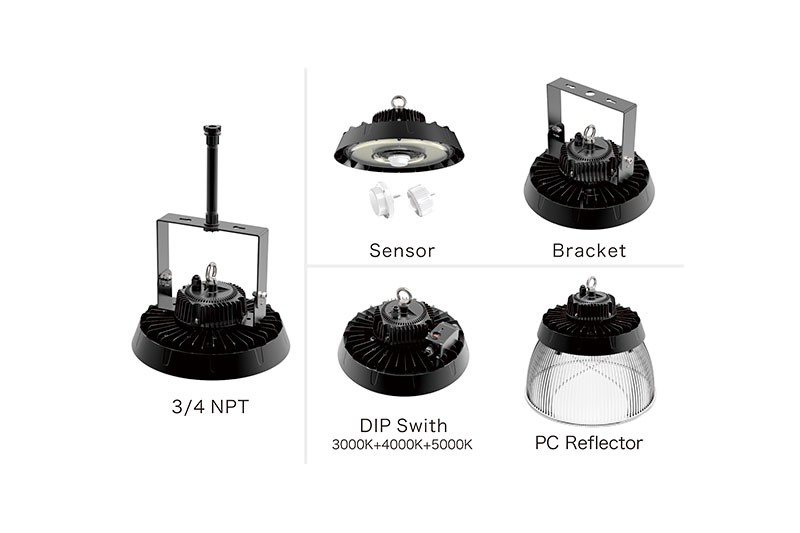

✔️Pluggable sensor available

✔️60°,90°,120°

✔️Slim and lightweight body

✔️CE ROHS IP65 IK10 Certificate

✔️100W-240W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    200W

    165lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    200W

  • Lumen Efficiency

    165Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    60°,90°,120°

  • Optimal Operating Temperature

    40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    50.000 hours - L70(12K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    320x320x188mm

  • Fixture Weight

    3.1kg

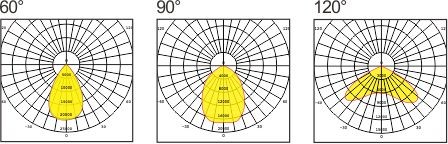

Photometric Specifications

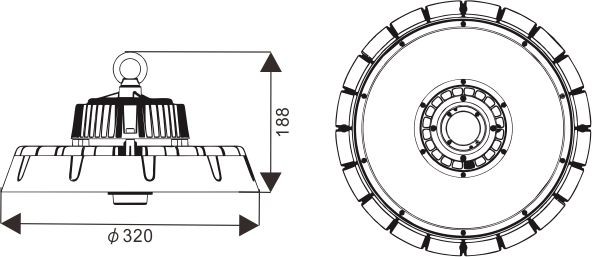

Dimension
