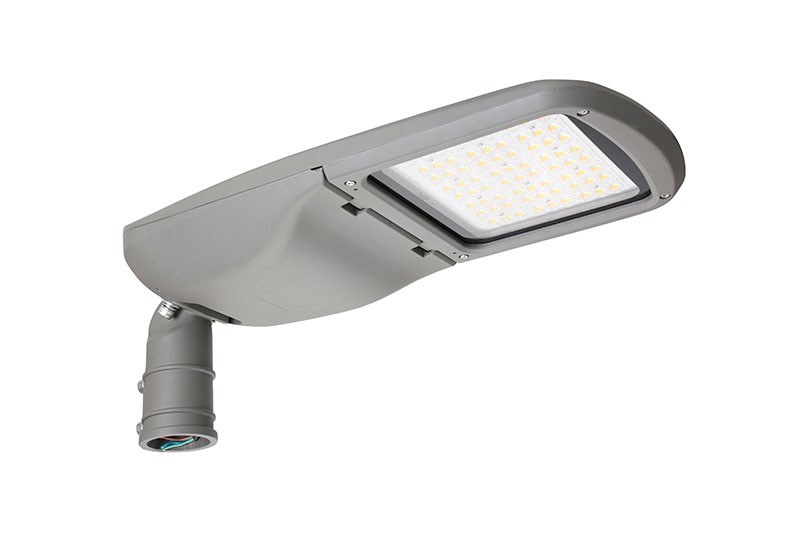

L29 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-200W. With 4mm tempered glass and high efficiency 5050 LEDs.
✔️ Adjustable spigots

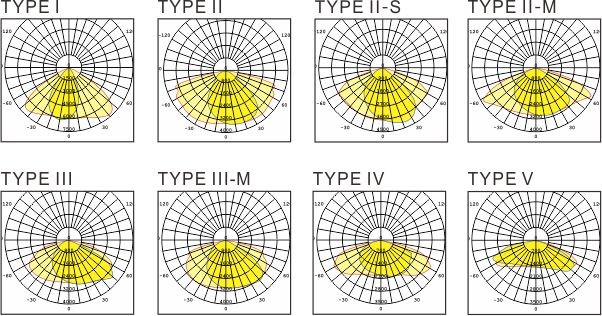

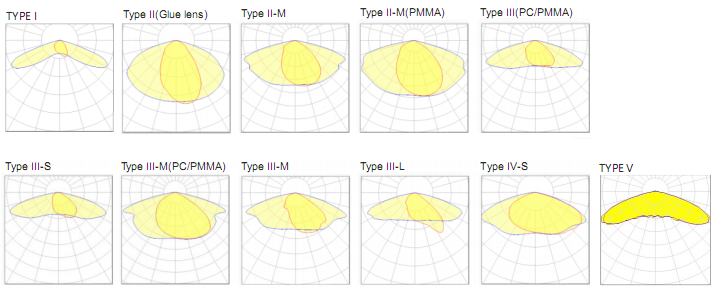

✔️ Type II, II-M, III, III-S, III-M, III-L, IV-S
✔️ Die-cast aluminium housing

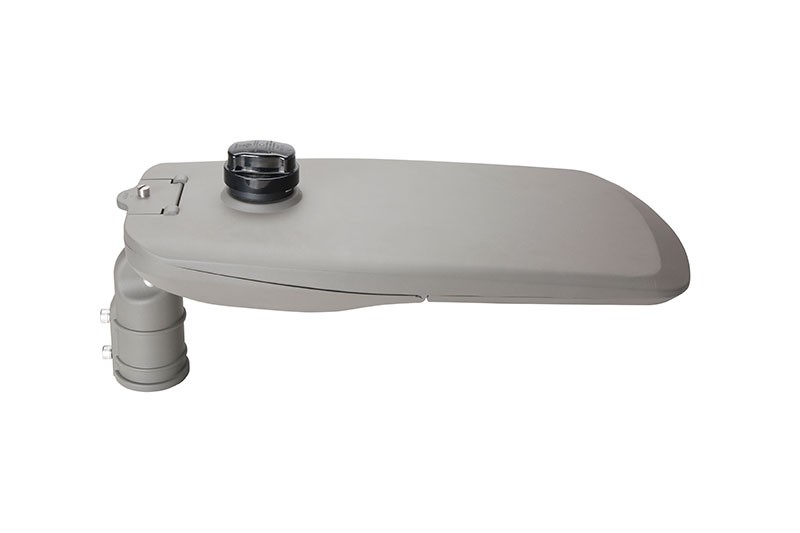

✔️ NEMA socket available
✔️ 80W-100W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
100W |
170lm/w |
Electrical Specifications
Nominal Wattage
80W-100W
Lumen Efficiency
150-170Lm/w
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type II, II-M, III, III-S, III-M, III-L, IV-S
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
102,000 hours L90B10(6K) at 25℃
Heat Radiator
Aluminum alloy
Lens
PC

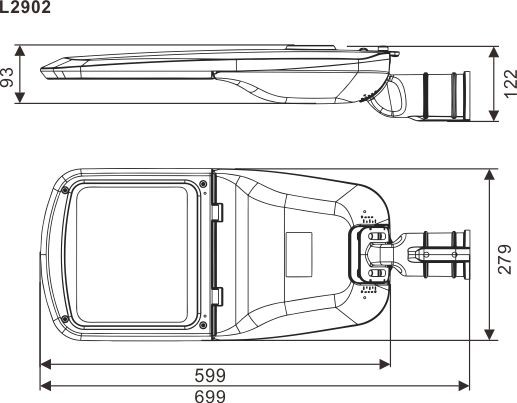

Fixture Dimension
699x279x122 mm
Fixture Weight
6.2kg
