L63 Economical design street lighting, is a cost-saving product from 30W to 200W for urban road lighting. System efficacy up to 160lm/w.
✔️ Fixed spigots
✔️ Type II-M
✔️ NEMA socket available
✔️ Die-cast aluminium housing
✔️ 150W-200W power range
✔️ 5 Years Warranty
IK08 |
IP66 |
years |
>Ra70 |
200W |
160lm/w |
Electrical Specifications
Nominal Wattage
150W-200W
Lumen Efficiency
160Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type II-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 92%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK08
Lumen Maintenance
100.000 hours - L70(12K)
Heat Radiator
Aluminum alloy
Lens
PC

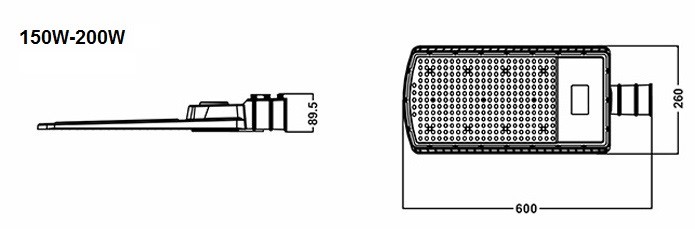

Fixture Dimension
600x620x89.5mm
Fixture Weight
3.68kg
