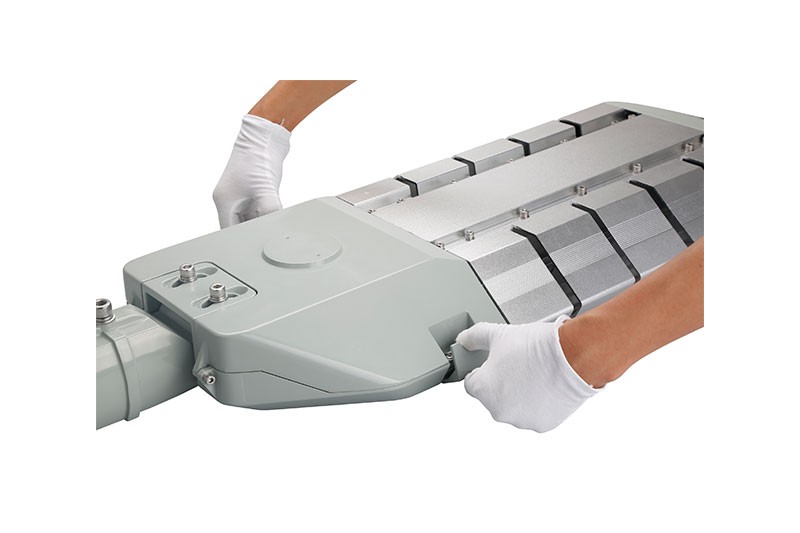

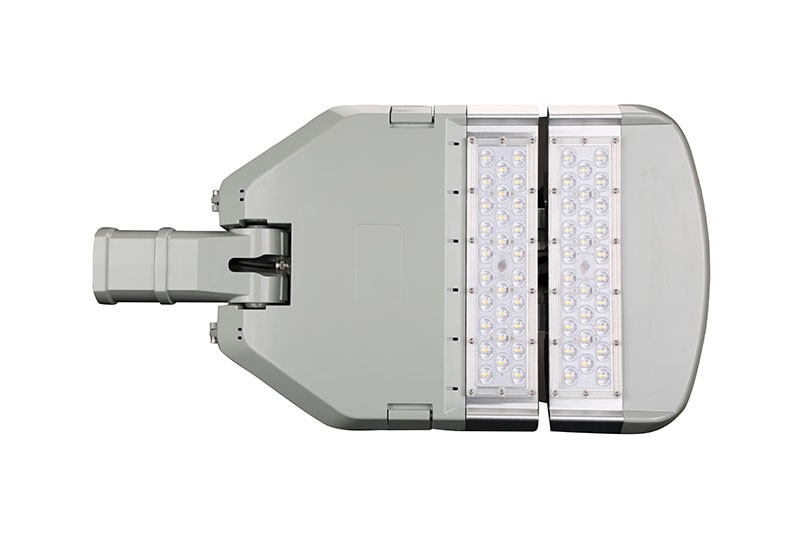

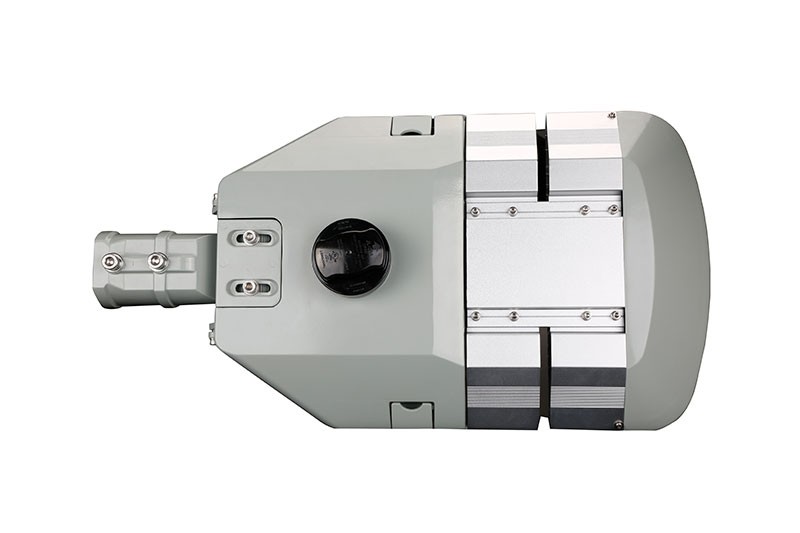

L16 series 30W-250W LED modular street light has been developed to ensure maximum energy efficiency in combination with modern technologies in LED lighting innovation.
✔️Adjustable spigots
✔️Type I,II,II-M,III,III-M
✔️Buckled design housing
✔️NEMA socket available
✔️60W-100W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
100W |
175lm/w |
Electrical Specifications
Nominal Wattage
100W
Lumen Efficiency
175Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle

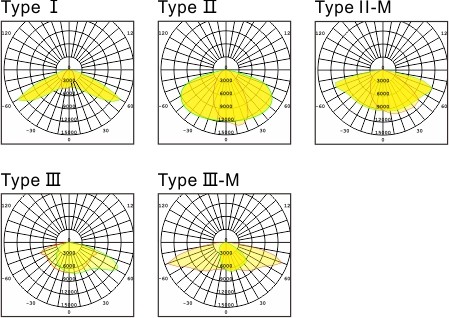

Type I,II,II-M,III,III-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
72,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

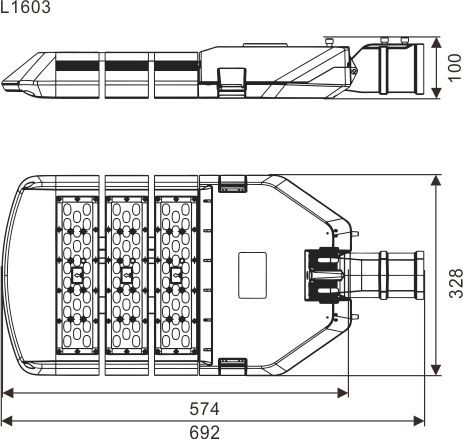

Fixture Dimension
692x328x100mm
Fixture Weight
6.6kg
