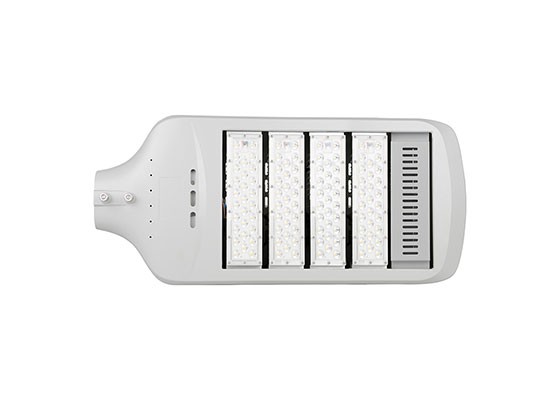

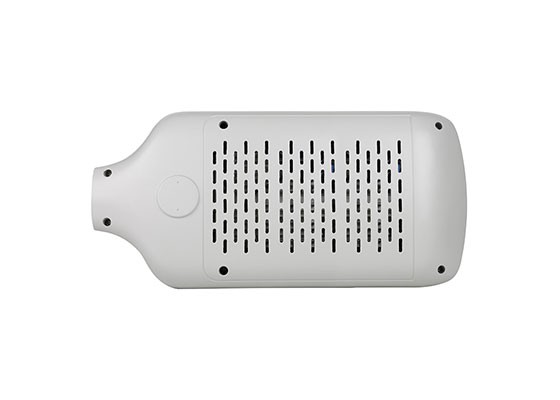

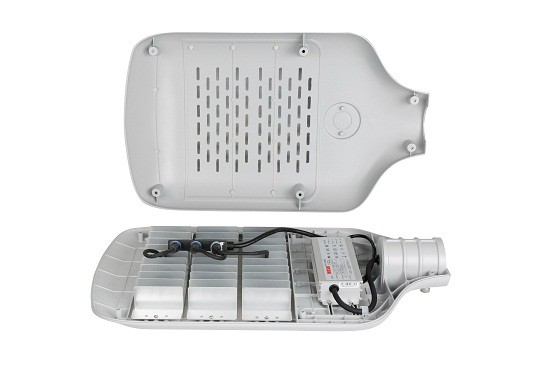

L13 is a simple modular design lamp for SKD choose. Wide power range from 50W-300W. it is a very economical and practical lamp with high efficiency up to 175lm/w.
✔️Fixed spigots
✔️Type I,II,II-M,III,III-M
✔️NEMA socket available
✔️120W-240W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
200W |
175lm/w |
Electrical Specifications
Nominal Wattage
200W
Lumen Efficiency
175Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle

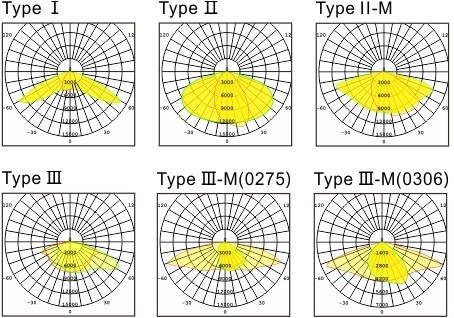

Type I,II,II-M,III,III-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 88%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
100,000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

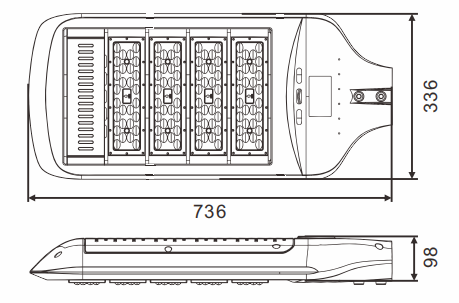

Fixture Dimension
738x336x98 mm
Fixture Weight
11.6kg
