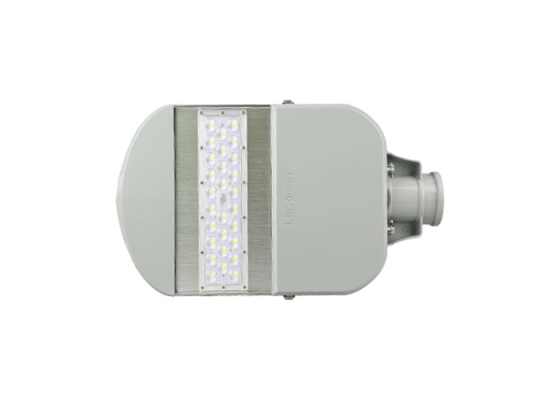

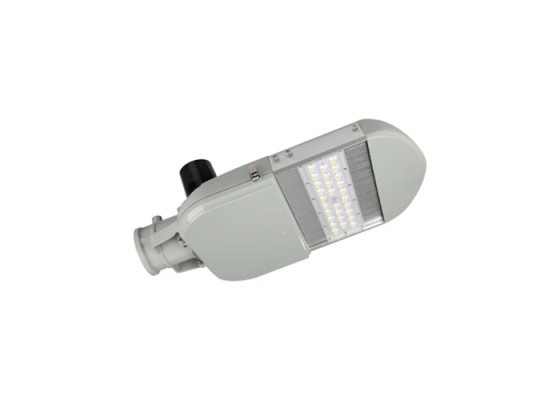

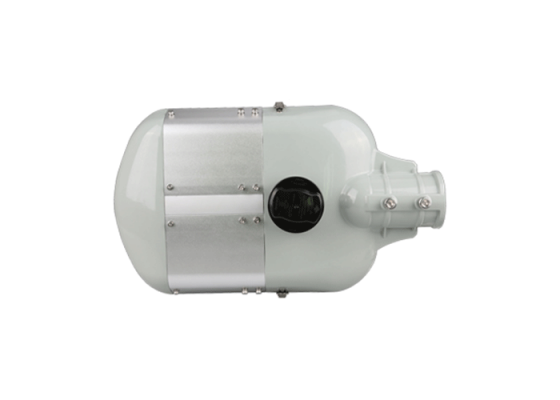

L12B meets most diverse requirements, Constructed of electrostatic paint stretched aluminium housing with tool-free maintenance design driver gabinet.
✔️Fixed spigots
✔️Type I,II,II-M,III,III-M
✔️Buckled design housing
✔️NEMA socket available
✔️30W-60W power range
✔️5 Years Warranty
IK10 |
IP66 |
years |
>Ra70 |
50W |
170lm/w |
Electrical Specifications
Nominal Wattage
50W
Lumen Efficiency
170Lm/w(+-5%)
Nominal Voltage
AC100-277V，50/60Hz

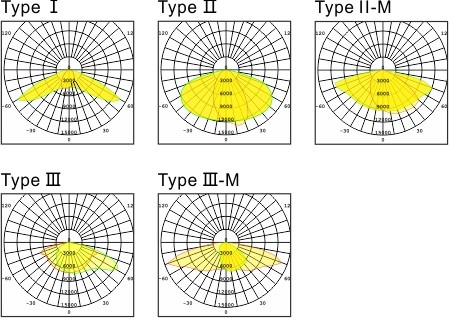

Beam Angle
Type I,II,II-M,III,III-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 88%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP65 | IK10
Lumen Maintenance
72.000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

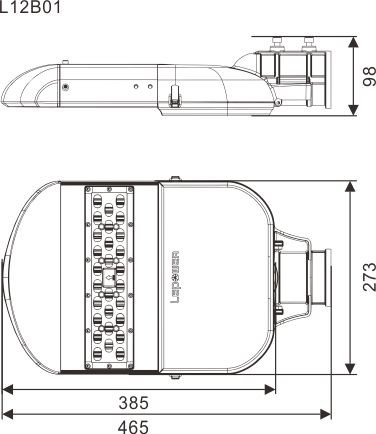

Fixture Dimension
465x273x98 mm
Fixture Weight
3.5KG
