Liyang Optoelectronics is based on fine products, casting quality, smaller luminous surface can achieve higher center illuminance, better performance can meet higher standards. Adhere to the consistent pursuit of high quality, only to provide you with high-quality light sources, Liyang EMC 5050 lamp beads can be customized according to demand.

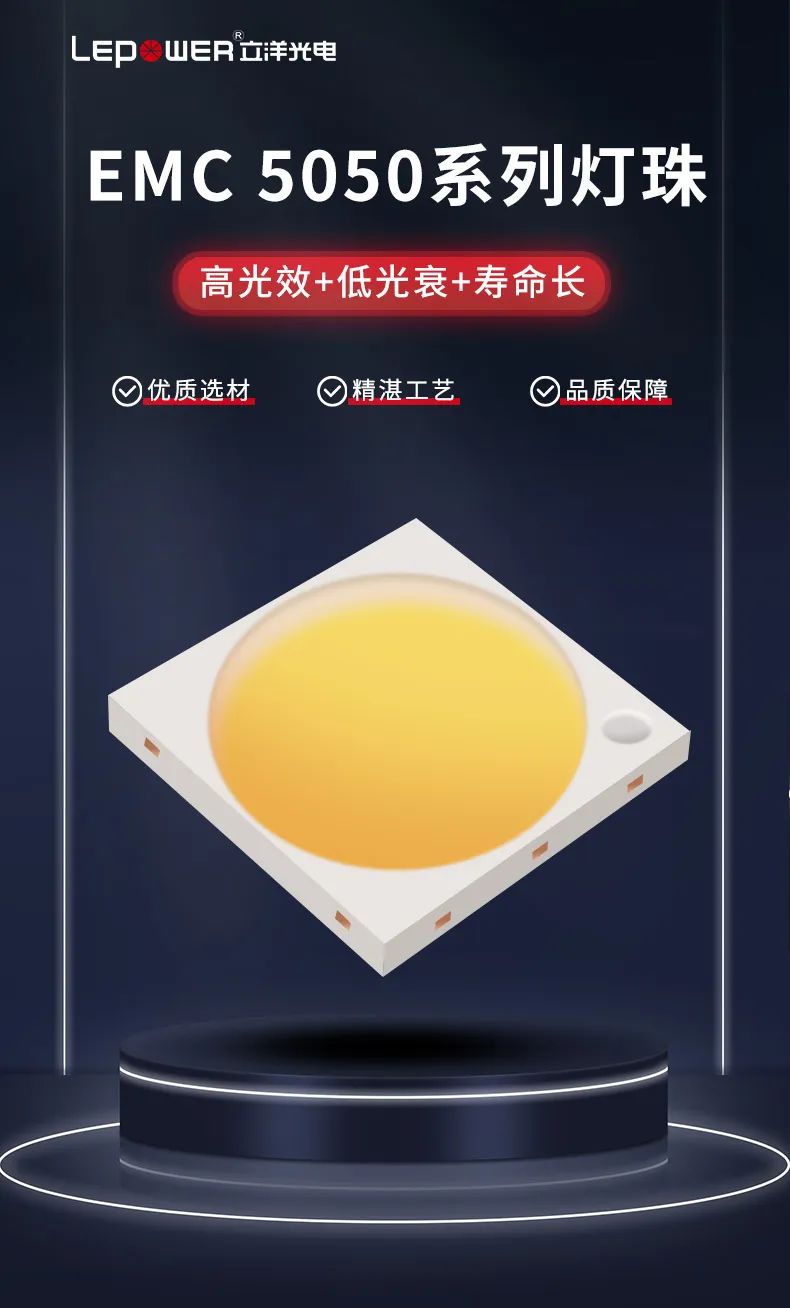

EMC Patch 5050 lamp bead small size, high reliability, support surface mount technology, greatly improve the product cost performance, square cup/round cup optional. The product has the characteristics of high light efficiency, fast heat dissipation, low energy consumption, low light decay, long life, etc., 1W light efficiency can reach 230LM/W. Light source uniform can be quickly lit, lamp beads using pure gold wire, better conductive performance, reduce current loss, more durable, through LM-80 certification, in line with RoHS.

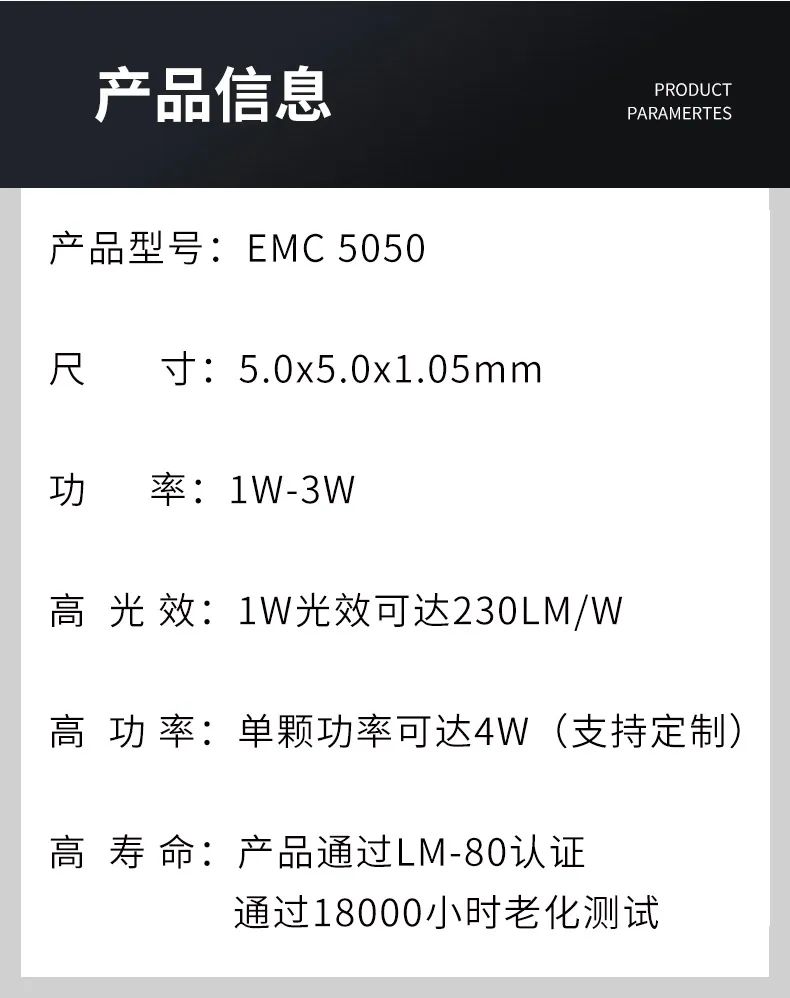

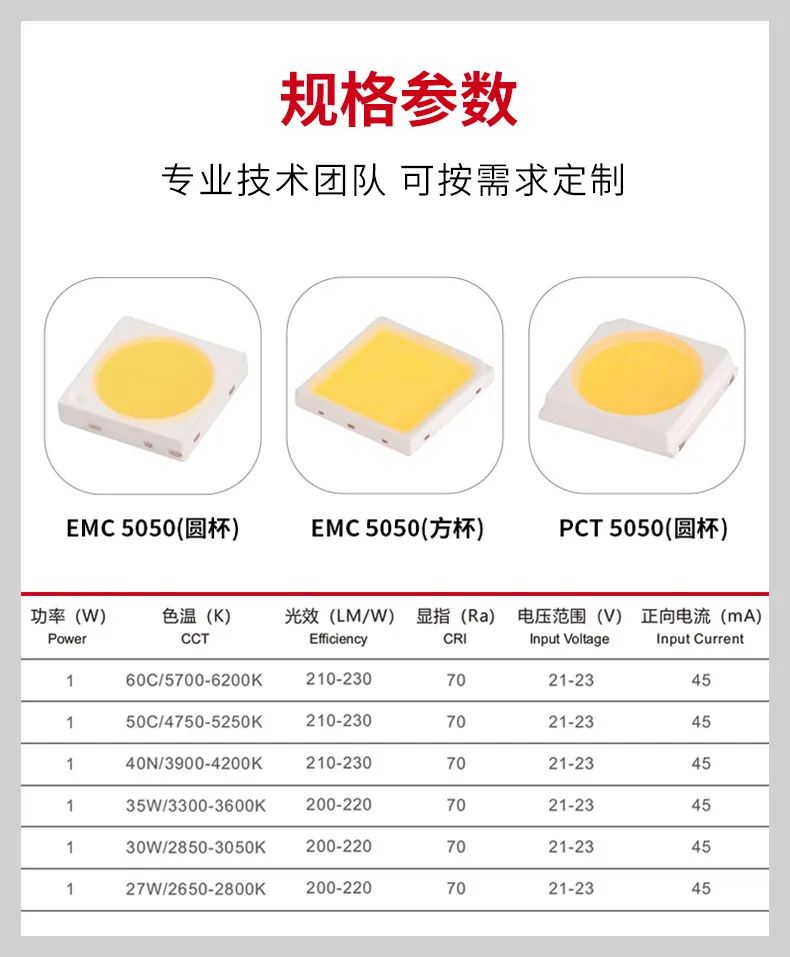

5050 lamp bead parameter specifications:

Product model: EMC 5050

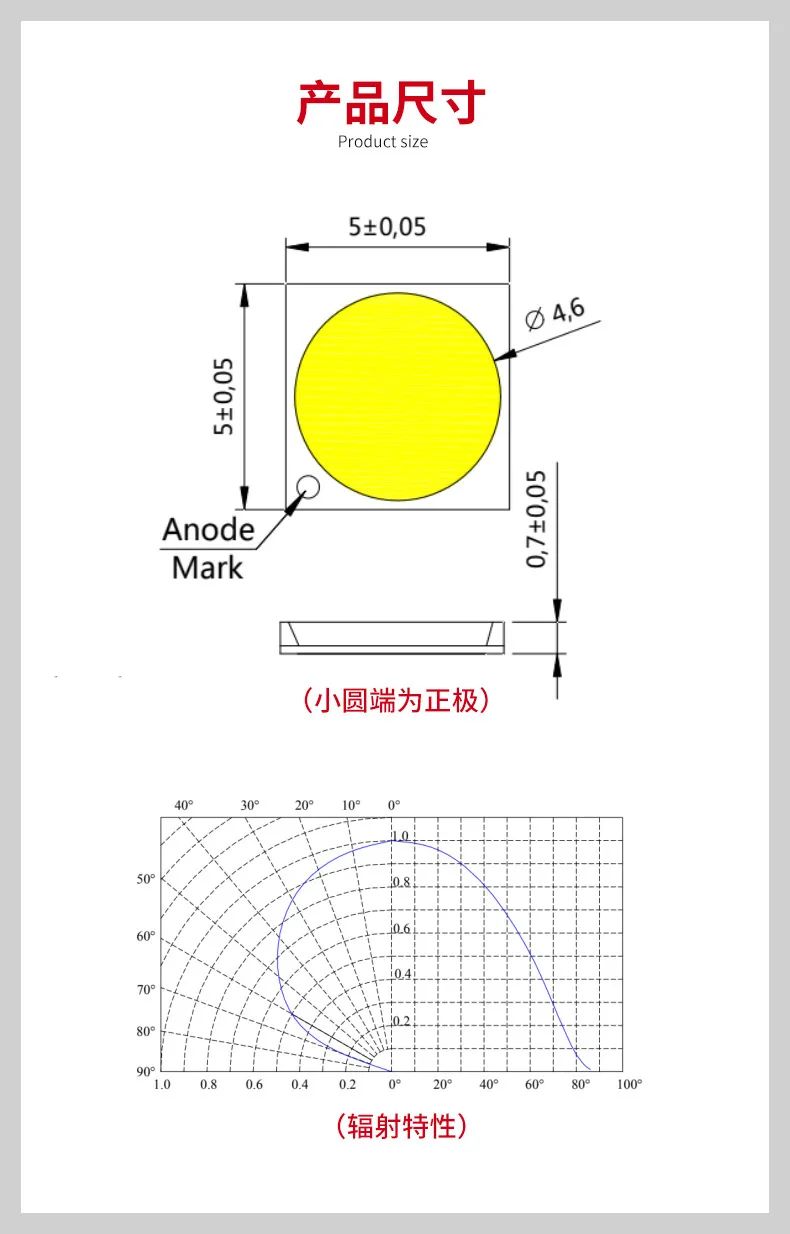

Size: 5.0x5.0x1.05mm

Power: 1W-3W

5050 lamp bead advantages:

High light efficiency: 5050 lamp bead 1W light efficiency up to 240LM/W.

High power rate: 5050 single lamp bead power up to 4W (support customization) more in line with customer requirements.

High life: 5050 lamp beads through LM-80 certification; Passed the 18,000-hour aging test.

The product has a large luminous Angle, and is widely used in outdoor high luminous efficiency street lights, court lights, floodlights, advertising lights, architectural lighting and other scenes.
