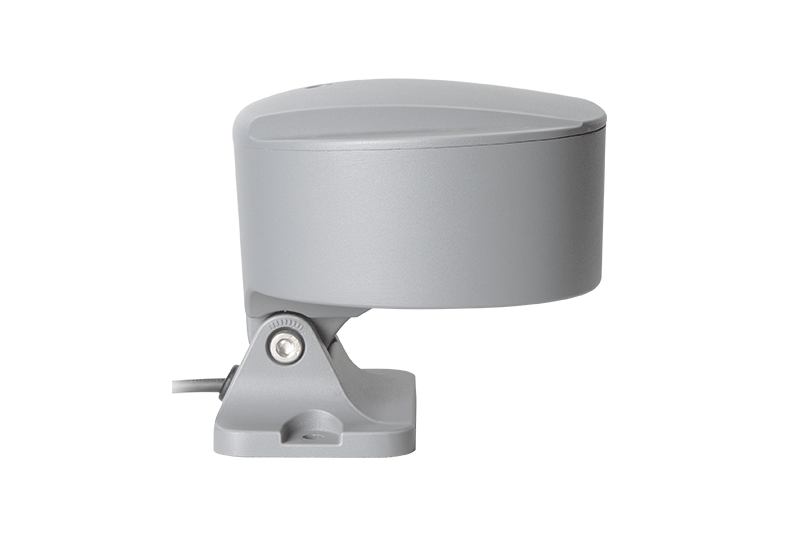

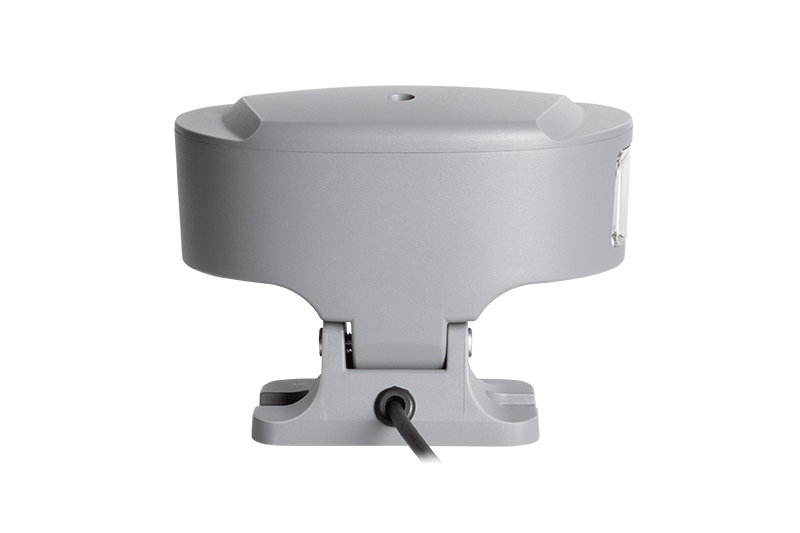

L33 LED road pilot light is an ideal solution for road lighting which not convenient to install light poles. Low glare & uniform light design with left and right direction.
✔️ Adjustable spot angle ±15°
✔️ 95x25° Left type/Right type
✔️ Die-cast aluminium housing
✔️ Low glare & uniform light lens design
✔️ Easy installation&Smooth back
✔️ 5 Years Warranty
IK08 |
IP65 |
years |
Ra>70 |
6W |
145lm/w |
Electrical Specifications
Nominal Wattage
6W
Lumen Efficiency
145Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
95x25° Left type/Right type
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP65 | IK08
Lumen Maintenance
101,000 hours L90B10(6K) at 25℃
Heat Radiator
Aluminum alloy
Lens
PC

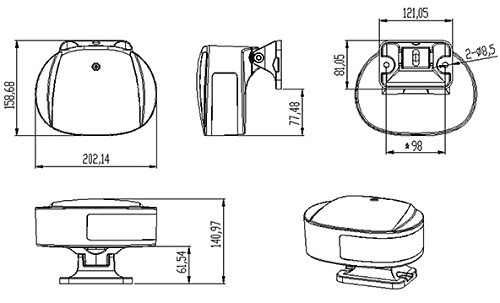

Fixture Dimension
202x158x141mm

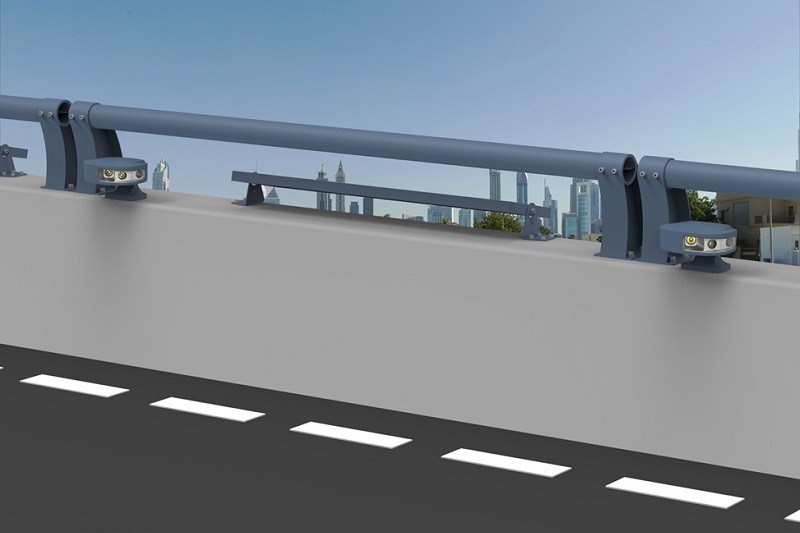

Installation Without Pole
Both sides of the road
Fixture Weight
0.81kg
