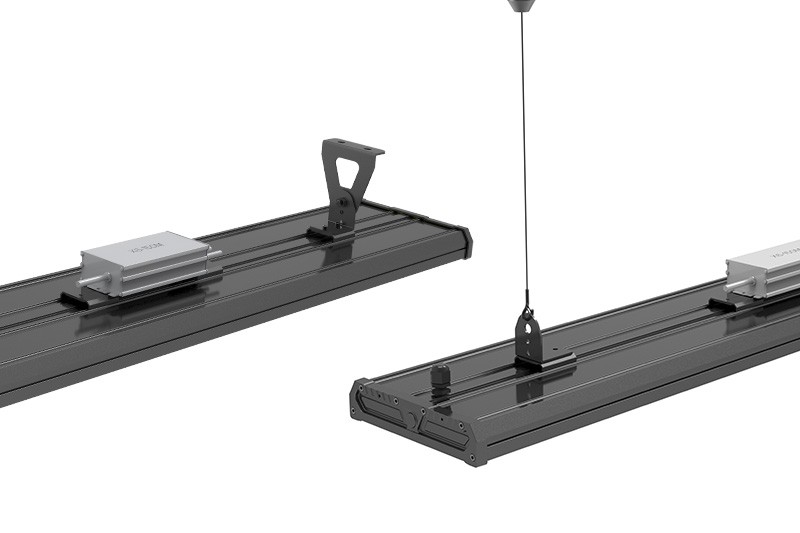

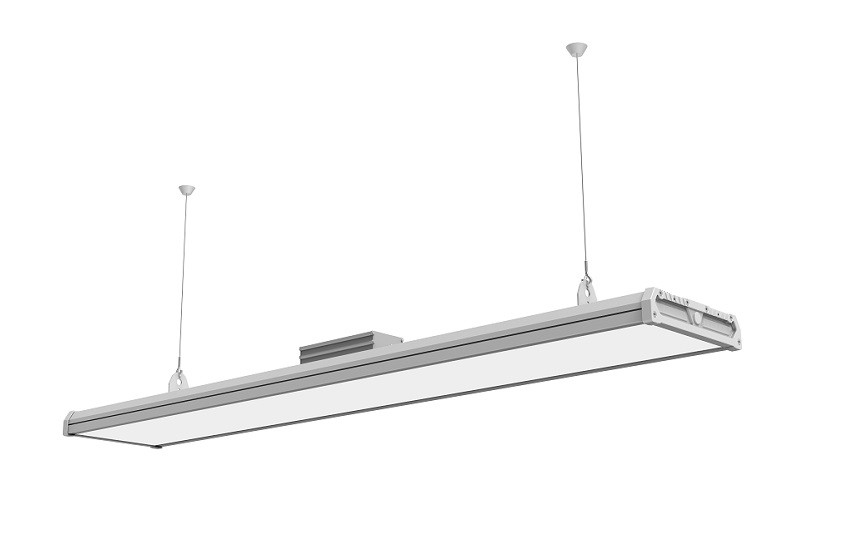

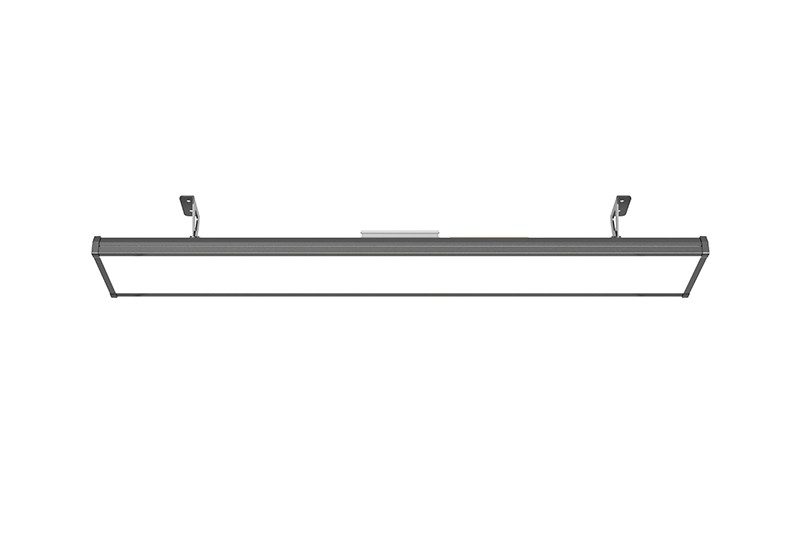

T20 linear high bay is the perfect lighting choice for a wide range of application area, smart sensor design and more optional installation type can meet different needs.
✔️Tempered glass cover design
✔️Battery backup optional
✔️Smart sensor available
✔️Standard length 1205mm
✔️50W-120W power range
✔️5 Years Warranty
IK06 |
IP65 |
years |
Ra>70 |
120W |
110lm/w |
Electrical Specifications
Nominal Wattage
120W
Lumen Efficiency
110Lm/w(±5%)
Nominal Voltage
AC 100-277V, 50/60Hz

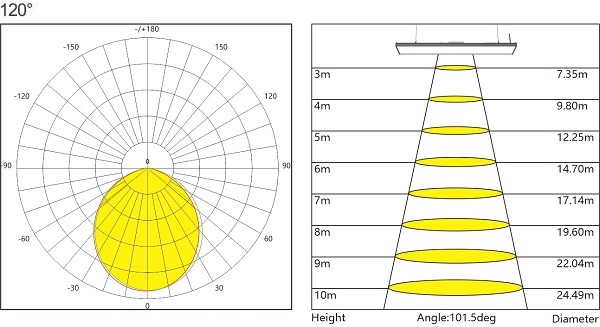

Beam Angle
120°
Optimal Operating Temperature
40°C to +45°C
Driver Efficiency
> 90%
Ra
>70/>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
50.000 hours - L70(12K)
Heat Radiator
Aluminum alloy
Cover
PC+Tempered glass

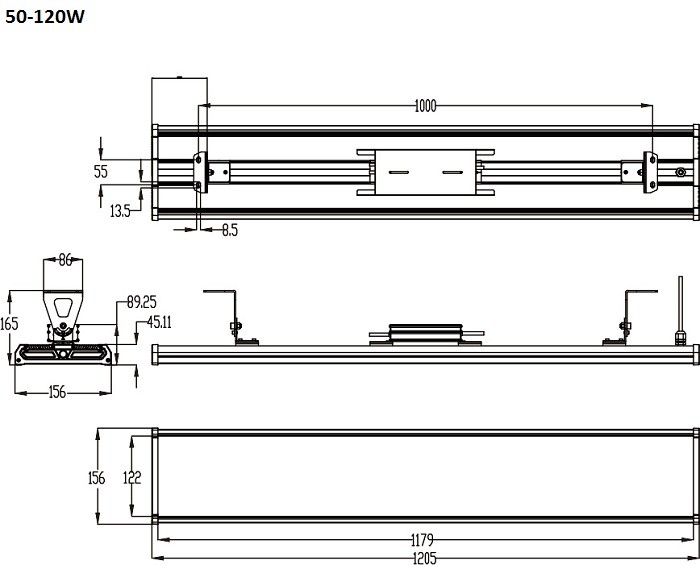

Fixture Dimension
1205x156x165mm
Fixture Weight
4.5kg
