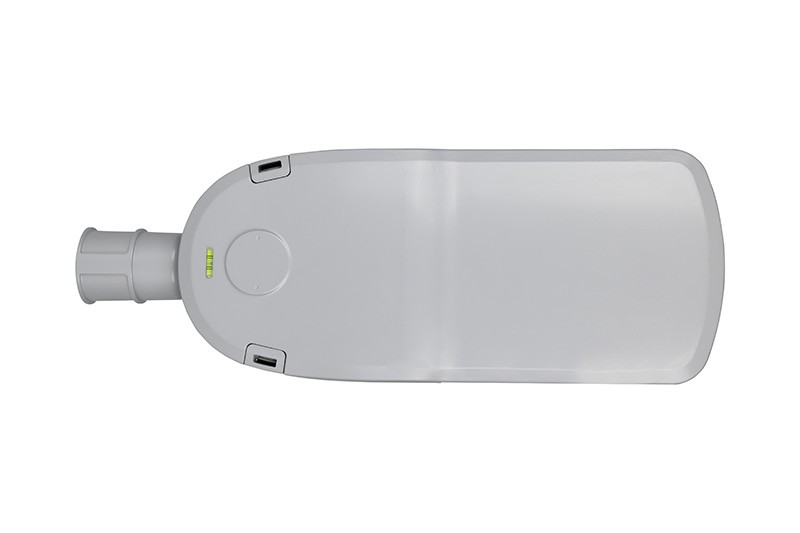

L36 LED Street Light is a classic design in lighting market. Power ranges covered from 30W-350W. Entirely tool-free maintenance design.
✔️ Adjustable spigots ±15°
✔️ Type II, II-M, III, III-S, III-M, III-L, IV-S
✔️ Die-cast aluminium housing
✔️ Pole diameter 35/45/48/60/76mm
✔️ 160W-250W power range
✔️ 5 Years Warranty
IK10 |
IP66 |
years |
Ra>70 |
160-250W |
170lm/w |
Electrical Specifications
Nominal Wattage
160-250W
Lumen Efficiency
150-170Lm/w(+-5%)
Nominal Voltage
AC 100-277V, 50/60Hz
Beam Angle
Type II, II-M, III, III-S, III-M, III-L, IV-S
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP66 | IK10
Lumen Maintenance
101,000 hours L90B10(6K) at 25℃
Heat Radiator
Aluminum alloy
Lens
PC

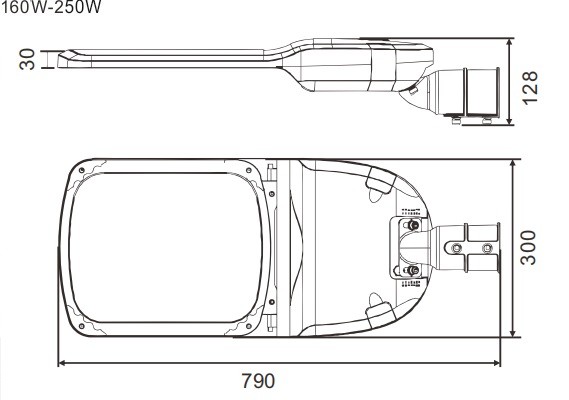

Fixture Dimension
790x300x128mm
Pole Diameter
35/45/48/60/76mm
Fixture Weight
7.1kg
