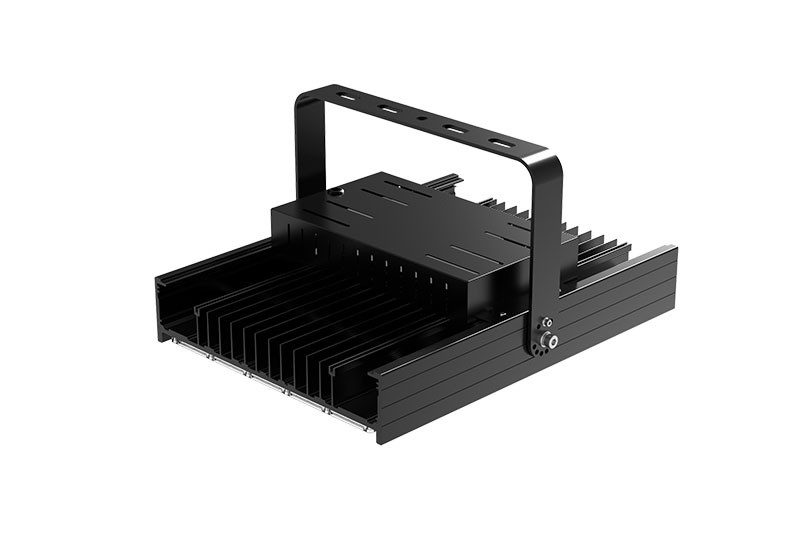

LED Flood Light

V2005

Main features:

V20 LED flood light is high purity extruded aluminum design, it is a very economical and practical lamp with various of beam angle for different lighting application.


✔️180° adjustable bracket

✔️10°,15°,30°,60°,90°,30X70°,60x90°,40X130°

✔️Integrated module design

✔️New cost effective design

✔️100W per module

✔️5 Years Warranty




     IK10

    IP66

     years

    Ra>70

    450-500W

    150lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    500W

  • Lumen Efficiency

    150Lm/w(±5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    10°,15°,30°,60°,90°,30X70°,60x90°,40X130°

  • Optimal Operating Temperature

    40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum 6063-T5

  • Lens

    PC

  • Fixture Dimension

    320x540x180.5mm

  • Fixture Weight

    10.2kg

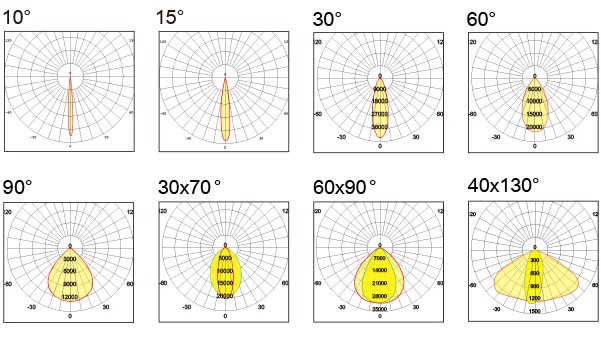

Photometric Specifications

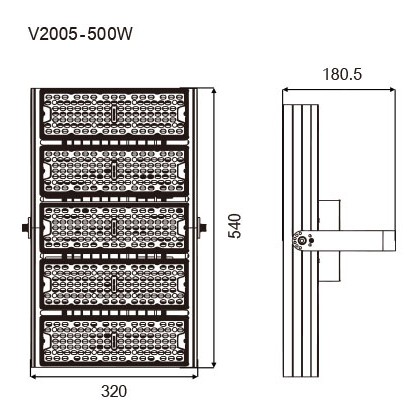

Dimension
