Home > Products > LED Flood Light Series > V6 Flood Light

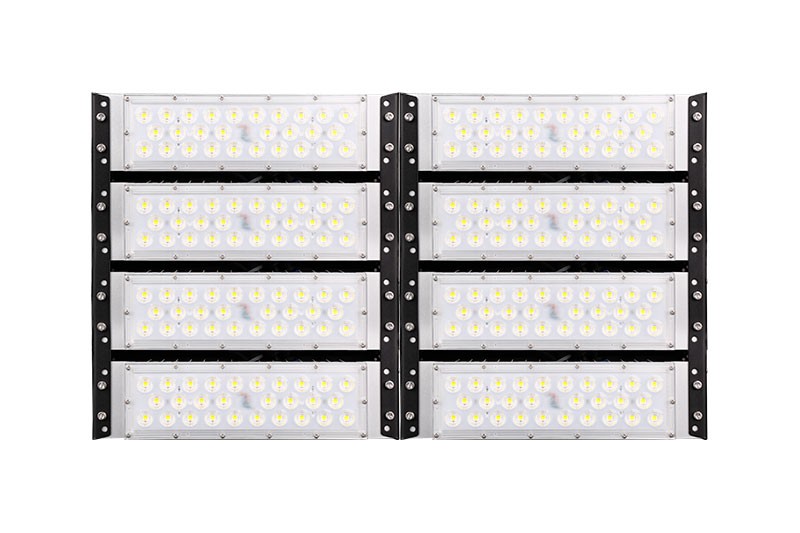

V6 Flood Light

  • Power: 50W-500W
  • Model No.LY-HB0601

    Certification:

    1.High pressure die cast aluminium alloy housing.

    2.Anti-corrosion with electrophoresis process.

    3.High performance design with multi-chips Package 5050 LED source and

    4.Exclusive Lens to stable performance,low light failure and no dead light.

    5.The light transmittance up to 98%,luminous efficacy up to 160-170lm/w.

    6.25°,40°,60°,90°,145x100°,150° for option,Uniform light distribution

    7.Apply to different industrial light project.

    8.Excellent operating temperature -40 ~ 50.

    9.100°adjusted angle available for outdoor & indoor lighting application.

    10.Green product,No UV,IR radiation or mercury pollution passed IEC62471.

    11.With excellent housing design reach IP66/IK10 rating.

    11.Installation method is option by wall mounted & pole mounted.

    12.0-10V,DALI system,Microwave motion upon your request.

    13.CE,Rohs,CB,LM-79,LM-80 approved.

    14.Lifespan over 50.000 hoursng, 5 years warranty.


    No.

    Name

    Nominal Value

    1

    Model

    LY-HB0601

    2

    Power

    50W

    3

    CCT

    30000K/4000K5000K

    4

    Beam angle

    25°/40°/60°/90°

    5

    Chip Brand

    San’an 22*35mil(8C1B)

    6

    LEDs Qty

    28pcs

    7

    CRI

    >70

    8

    Efficiency

    160.68Lm/W

    9

    Lumen

    8166lm

    10

    IP Rate

    IP66

    11

    Working Voltage

    90-305V

    12

    Working Tempeature

    -40~5020%~90% H.R

    13

    Storage Temperature

    -40~8510%~90% H.R.

    14

    Power Efficiency

    90%

    15

    Power Factor

    >0.98

    16

    Lifespan

    50000H

    17

    Housing Material

    AL6063-T5

    18

    Light size

    260*105*195mm

    ±5mm

    19

    Package size

    (4PCS/Carton)

    450*280*215mm

    ±5mm

    20

    Light N.W.

    2.5kg

    ±0.1kg

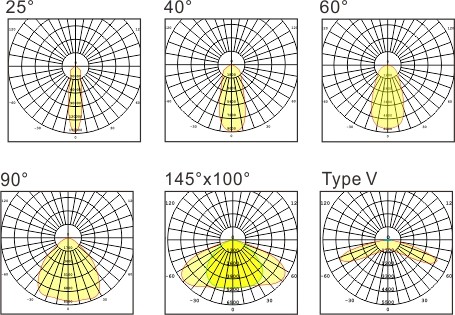

    Distribution Curve:

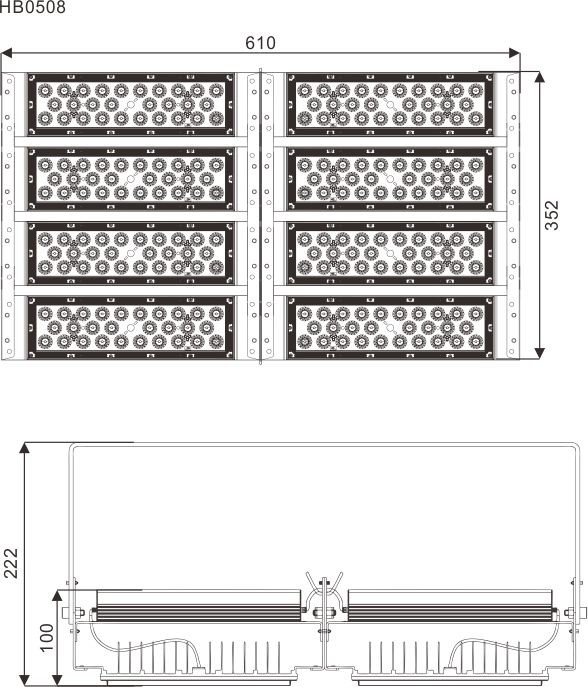

    Dimension:
