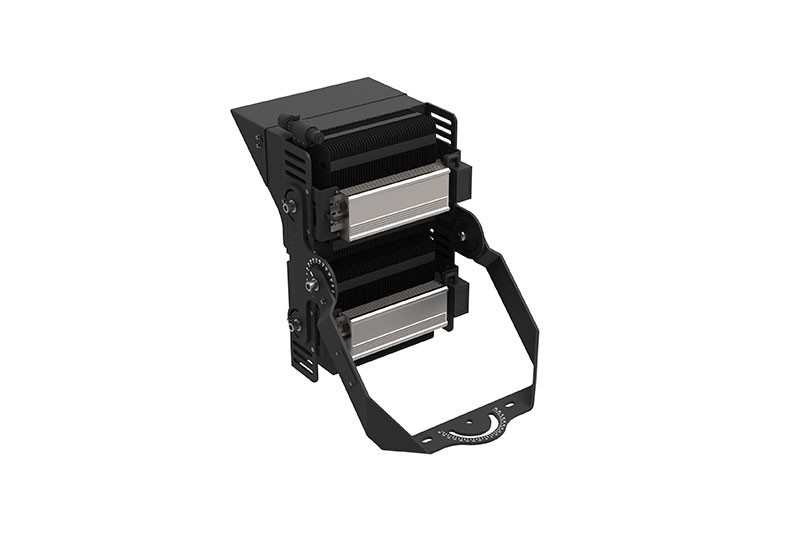

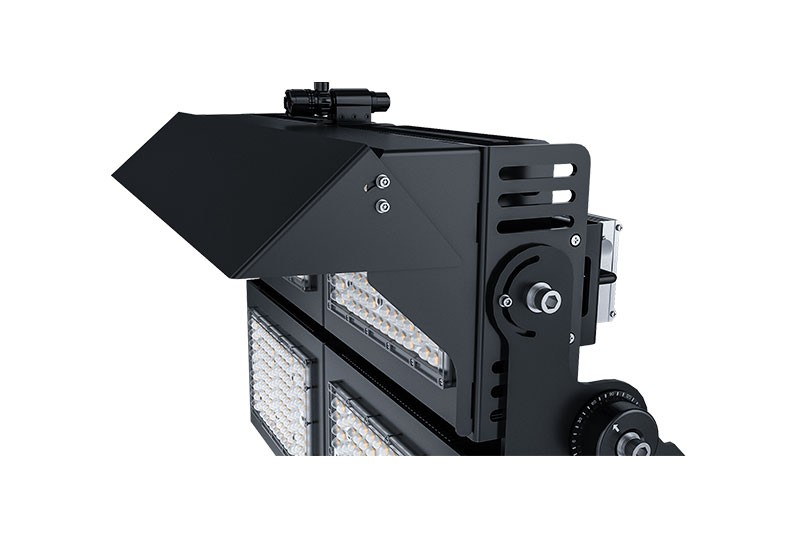

LED Stadium Light

LY-V1802-500

Main features:

V18 LED stadium lamp is a patented Fin heat sink design product,with high efficiency LED,various of beam angle for different professional sports court lighting application.


✔️270° adjustable bracket

✔️10°,15°,24°,36°, 60°,90°,30x45°,G50°

✔️Independent module design

✔️CE ROHS IP66 IK10 certificate

✔️500W-600W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    600W

    110&160Lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    600W

  • Lumen Efficiency

    110Lm/w(10°)&160Lm/w(15/24/36/60/90/30X45°)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    10°,15°,24°,36°,60°,90°,30X45°,G50°

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80


Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    409x500x163mm

  • Fixture Weight

    13.5kg


Photometric Specifications

Dimension
