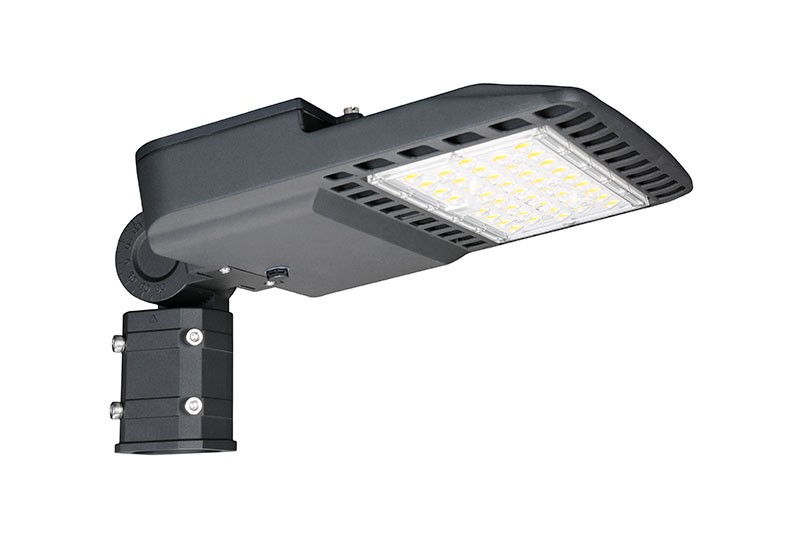

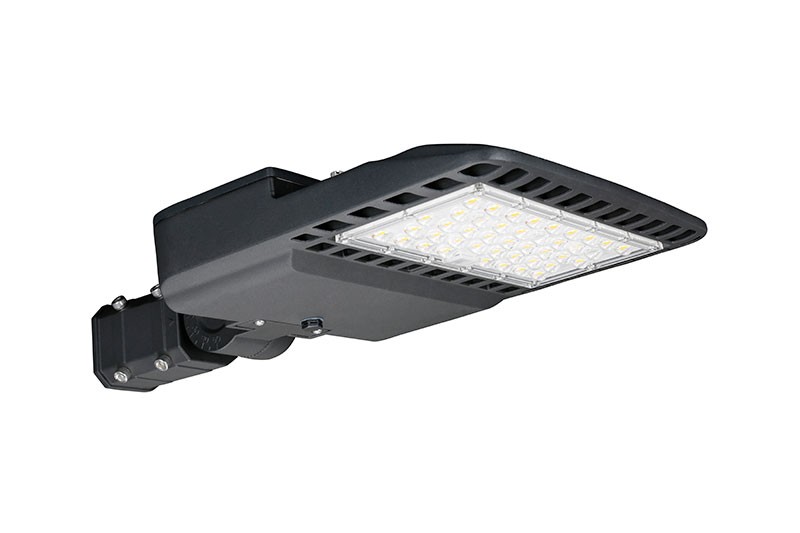

LED Street Light

LY-XH0101-70

Main features:

High pressure die-cast aluminium alloy housing LED shoe box light suitable for billboard advertising, road lighting and area lighting.

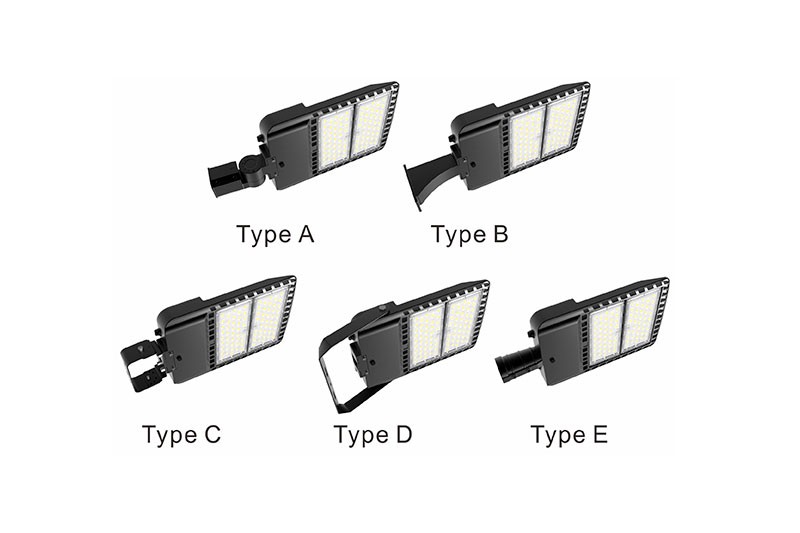

✔️ 5 spigots optional

✔️ 120x50°,145x100°,150x70°,Type II-M,III,IV,V

✔️ Black/Grey housing color

✔️ NEMA socket available

✔️ 60W-100W power range

✔️ 5 Years Warranty


     IK10

    IP66

     years

    Ra>70

    60-100W

    140-170lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    60W-100W

  • Lumen Efficiency

    140-170Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    120x50°,145x100°,150x70°,Type II-M,III,IV,V

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    101,000 hours L90B10(6K) at 25℃

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    481x312x93mm

  • Fixture Weight

    5.2kg

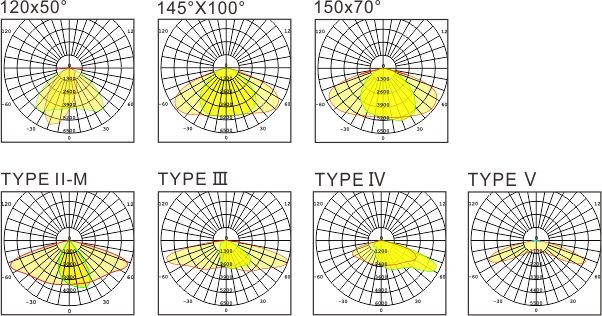

Photometric Specifications

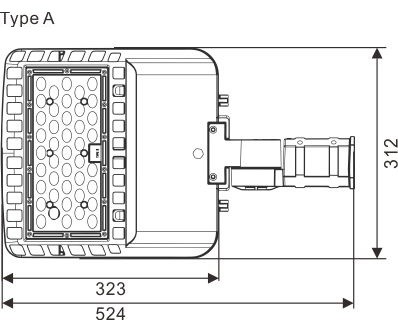

Dimension
