LED Street Light

LY-L1603

Main features:

L16 series 30W-250W LED modular street light has been developed to ensure maximum energy efficiency in combination with modern technologies in LED lighting innovation.


✔️Adjustable spigots

✔️Type I,II,II-M,III,III-M

✔️Buckled design housing

✔️NEMA socket available

✔️120W-150W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    150W

    175lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    150W

  • Lumen Efficiency

    175Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type I,II,II-M,III

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    692x328x100mm

  • Fixture Weight

    6.6kg

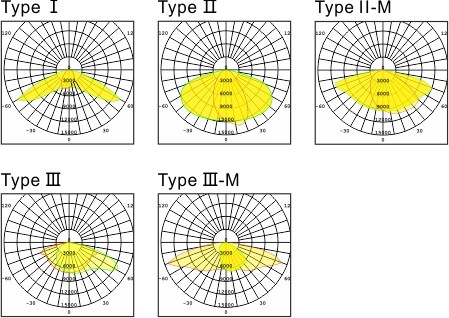

Photometric Specifications

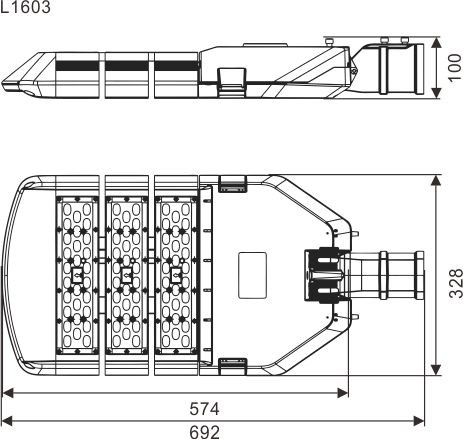

Dimension
