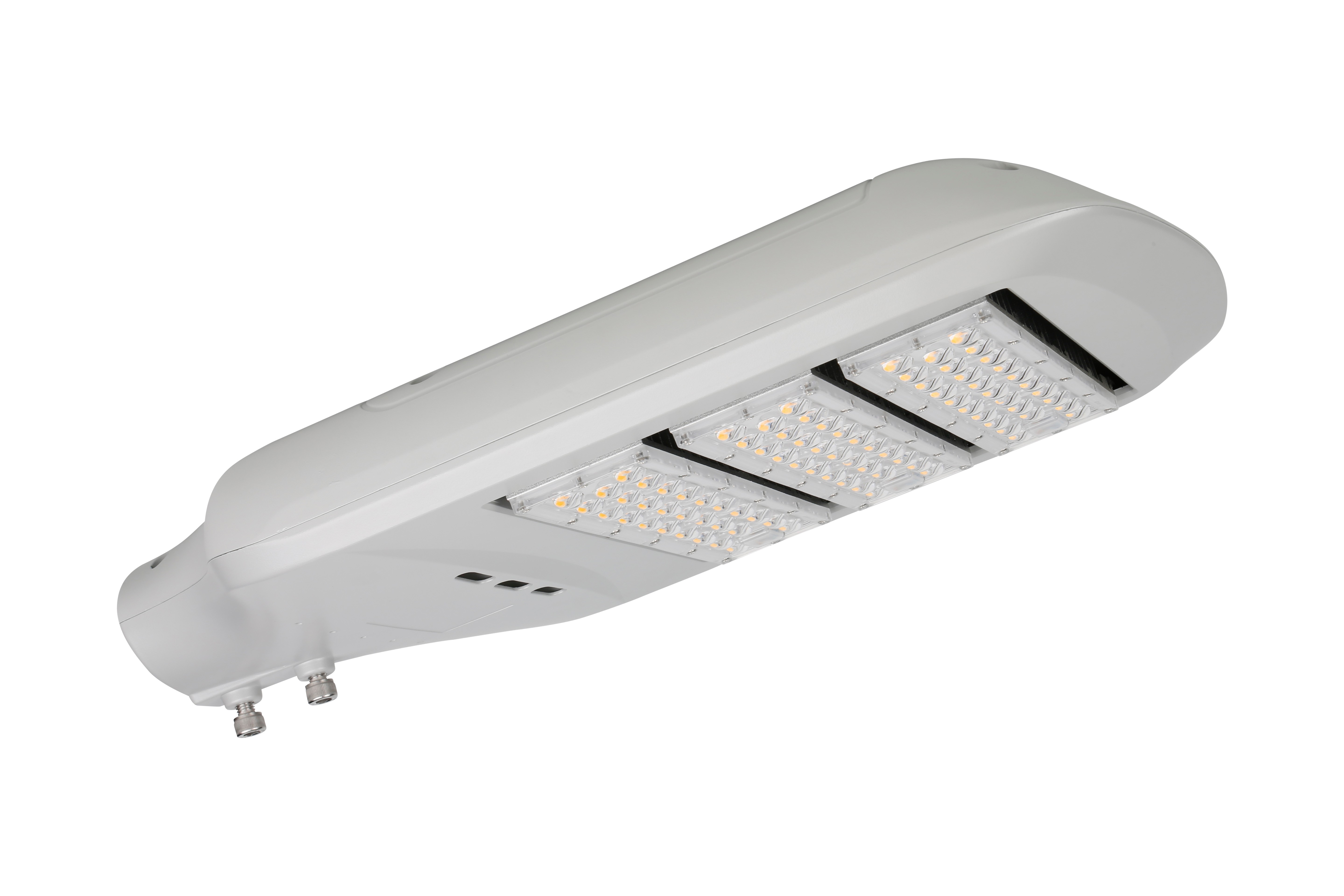

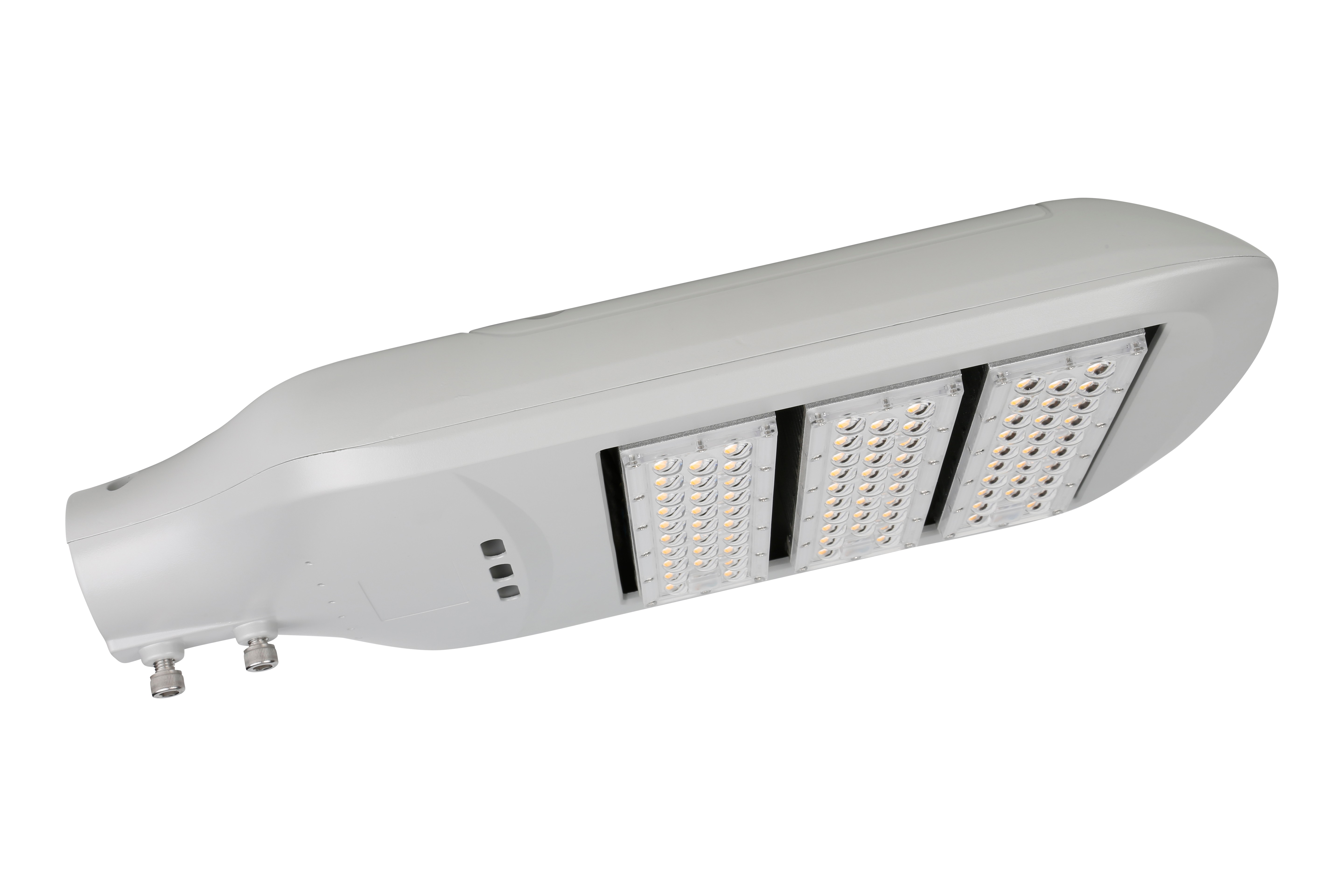

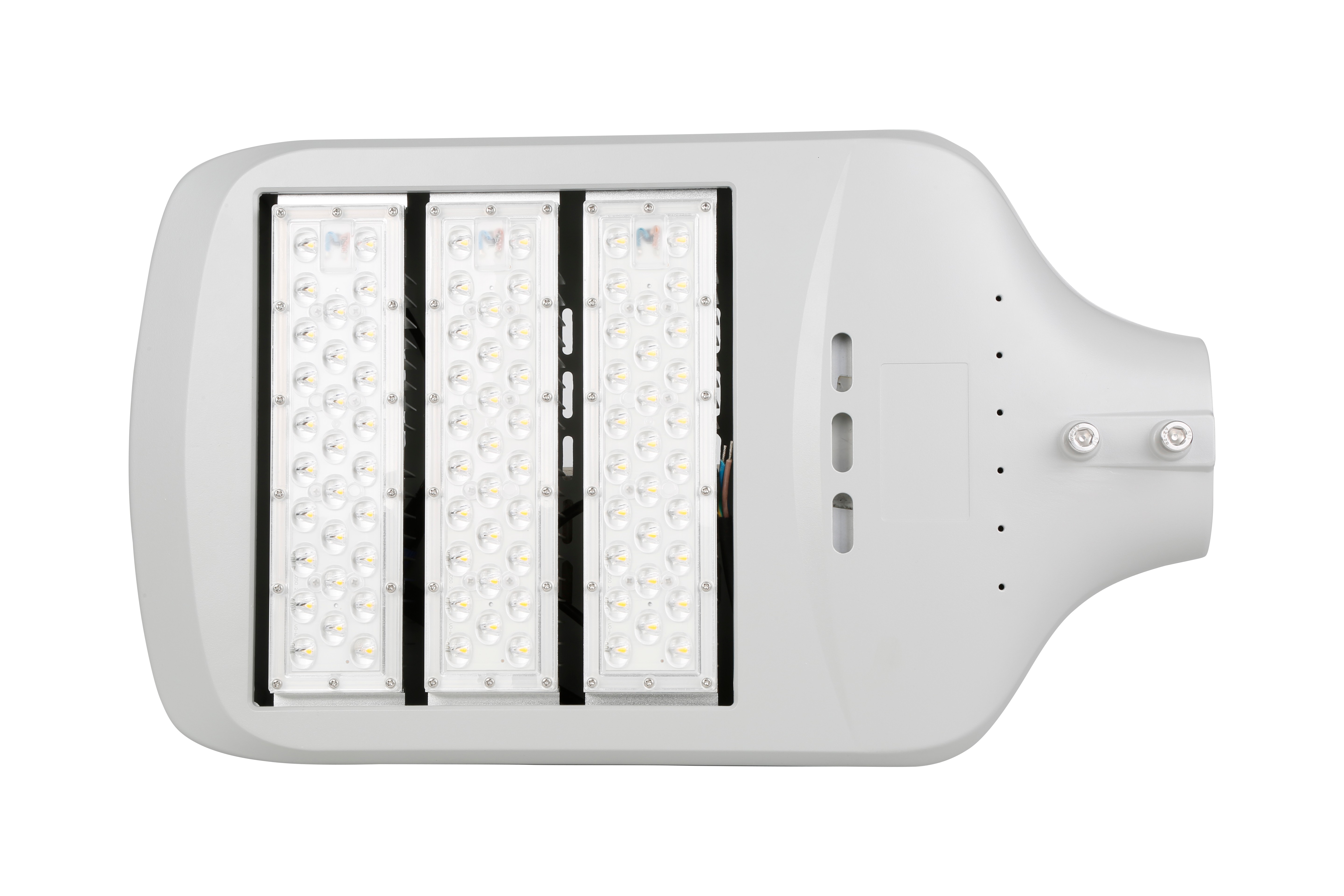

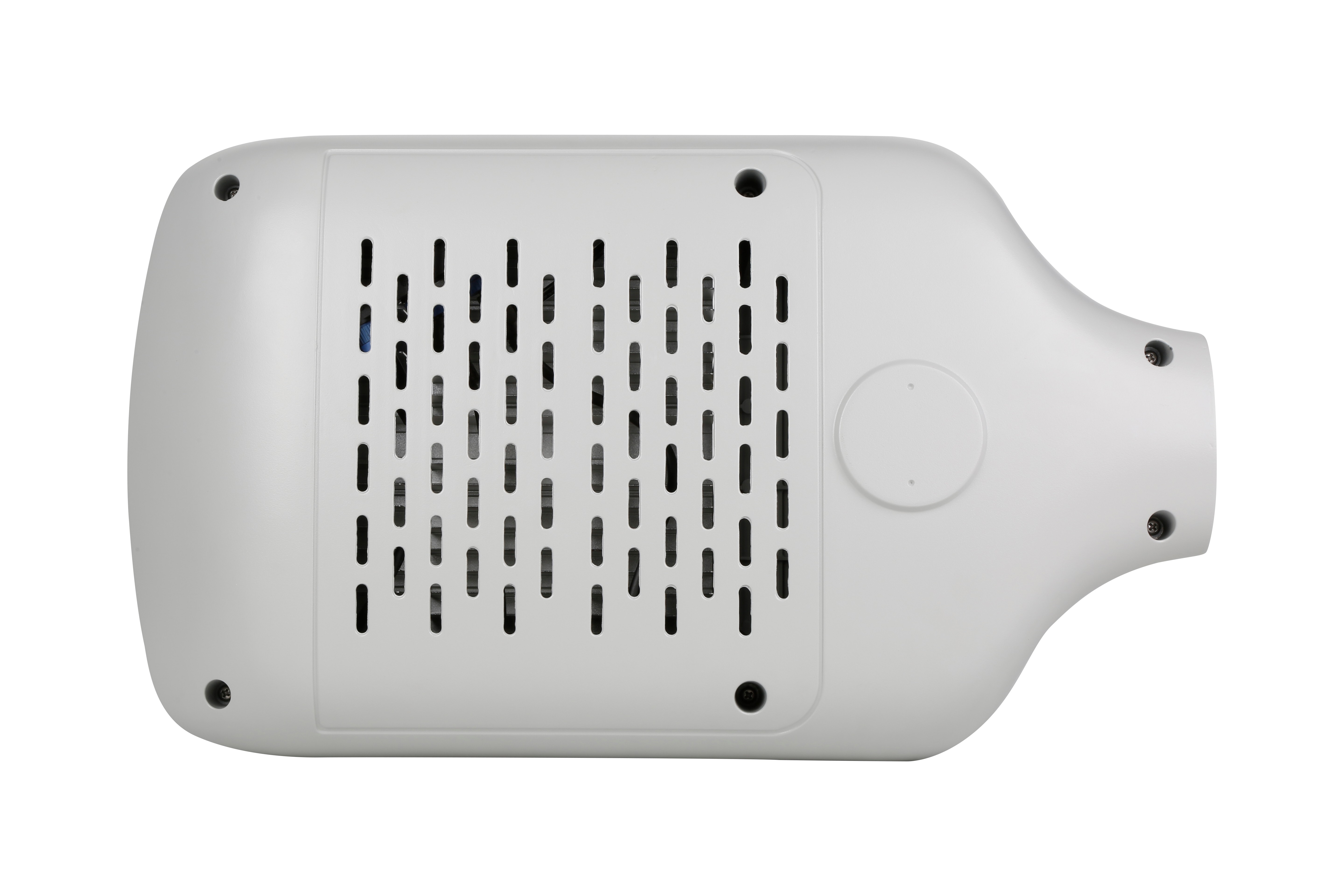

LED Street Light

L13B-03

Main features:

L13 is a simple modular design lamp for SKD choose. Wide power range from 50W-300W. it is a very economical and practical lamp with high efficiency up to 170lm/w.


✔️Fixed spigots

✔️Type I,II,II-M,III,III-M

✔️NEMA socket available

✔️90W-180W power range

✔️5 Years Warranty


     IK10

    IP66

     years

    >Ra70

    150W

    175lm/w


LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    150W

  • Lumen Efficiency

    175Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    Type I,II,II-M,III,III-M

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 88%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    100,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    571x336x98 mm

  • Fixture Weight

    9.6kg

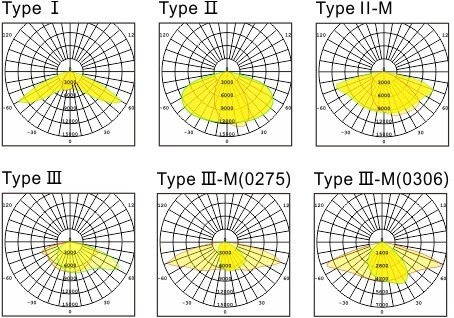

Photometric Specifications

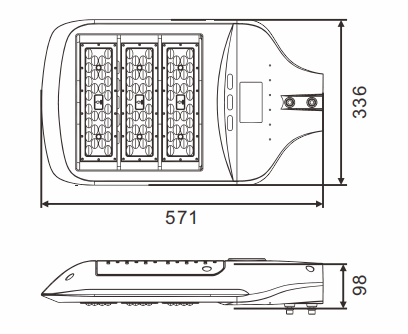

Dimension
