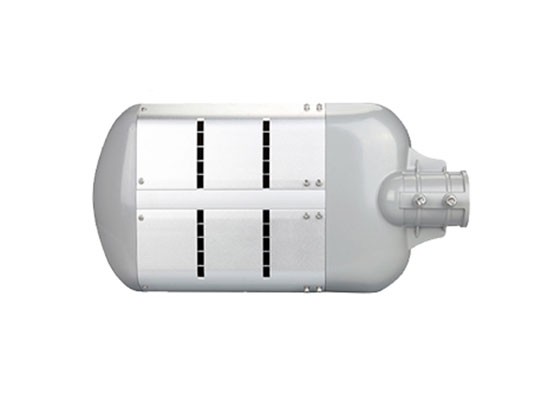

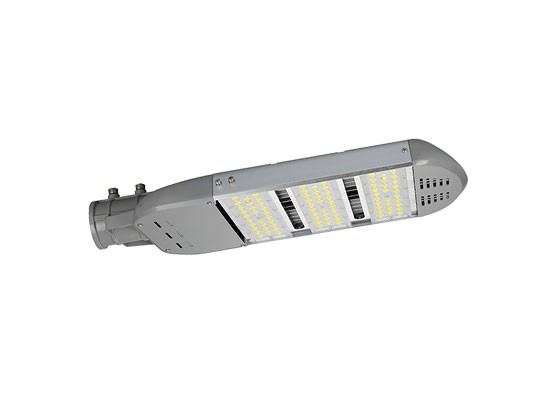

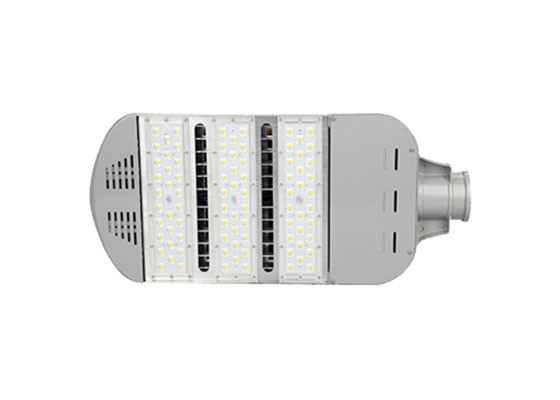

The L12 is an economical high efficiency street lamp suitable for standard roads with some basic lighting requirements.
✔️Fixed faucet
✔️Type I, II, II-M, III, III-M
✔️Economic design
✔️120W-150W power range
✔️5 years warranty
IK10 |
IP65 |
years |
>Ra70 |
150W |
175lm/w |
Electrical Specifications
Nominal Wattage
150W
Lumen Efficiency
175Lm/w(+-5%)
Nominal Voltage
AC 100-277V，50/60Hz

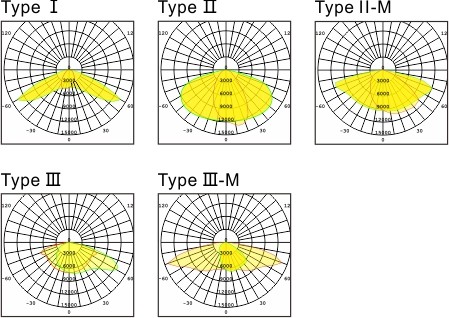

Beam Angle
Type I,II,II-M,III,III-M
Optimal Operating Temperature
-40°C to +50°C
Driver Efficiency
> 90%
CRI
Ra>70/Ra>80
Mechanical Specifications
Ratings
IP65 | IK10
Lumen Maintenance
72.000 hours - L70(9K)
Heat Radiator
Aluminum alloy
Lens
PC

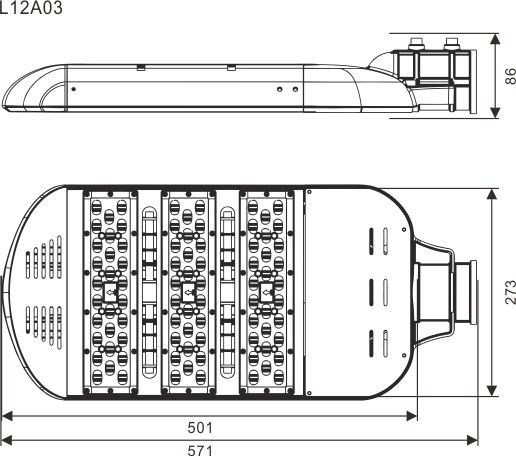

Fixture Dimension
571x273x86mm
Fixture Weight
4.9KG
