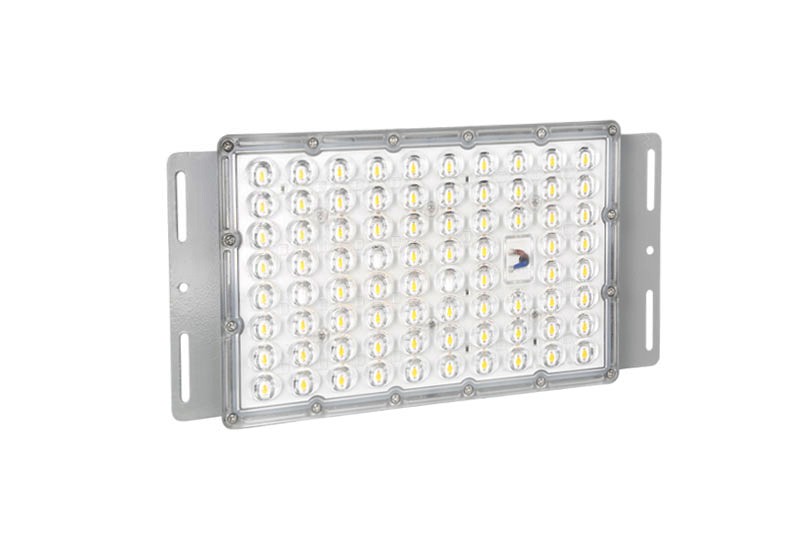

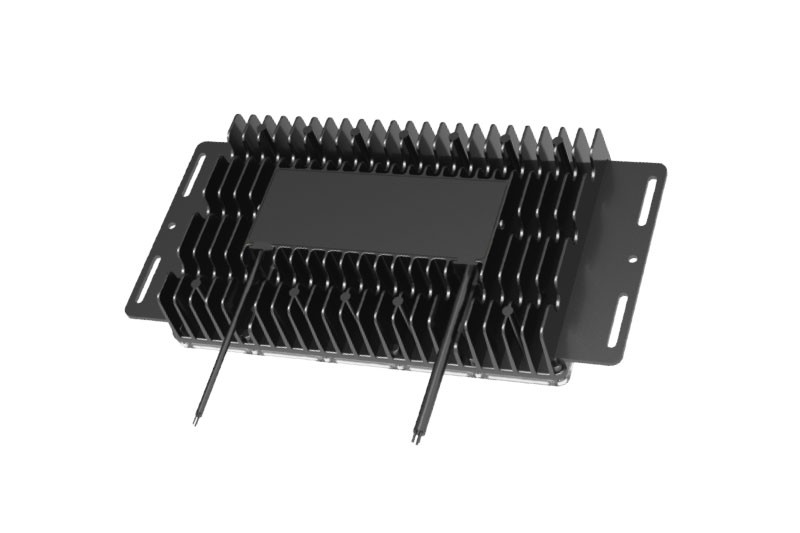

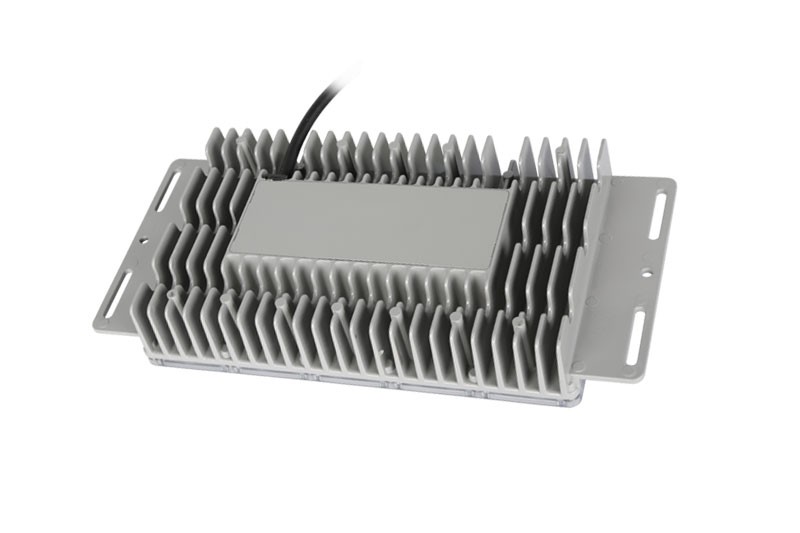

LED Module

M37-100W

Main features:

Unique built-in LED driver design, power range from 100W-150W, cost-effective and competitive in the industry.


✔️ Built-in 0-10V driver

✔️ Type III street light lens

✔️ Sliver/black heat sink color

✔️ High efficiency 3030 LED

✔️ 100-120W power range

✔️ 2/3 Years Warranty


     IK10

    IP66

     years

    Ra>70

    120W

    160lm/w

LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    100W

  • Lumen Efficiency

    140-160Lm/w(+-5%)

  • Nominal Voltage

    AC120-277V

  • Beam Angle

    Type III

  • LED Type

    SMD 3030/5050

  • CCT

    3000K-6000K

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66

  • Lumen Maintenance

    50,000 hours - L70

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    300*146*43mm

  • N.W.

    1.2KG

  • Certificates

    CE, Rohs, LM-80


Photometric Specifications

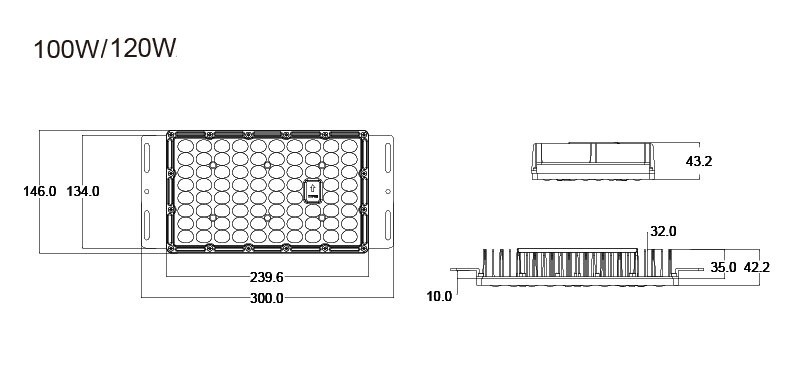

Dimension
