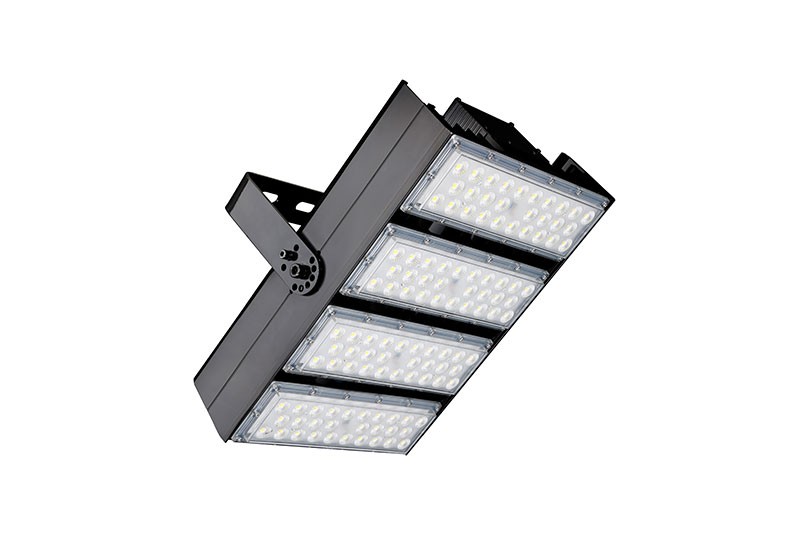

LED Tunnel Light

LY-HB06B04

Main features:

HB06B series LED flood light are ultimate replacement light fixtures. Suitable for sport area lighting, high bay lighting, tunnel lighting etc.


✔️100° adjustable bracket

✔️25°,40°,60°,90°,145x100°,Type V

✔️Die-cast aluminum housing

✔️CB CE ROHS certificate

✔️180W-200W power range

✔️5 Years Warranty


 IK10

IP66

 years

>Ra70

200W

175lm/w




LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    20W

  • Lumen Efficiency

    175Lm/w(+-5%)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    25°,40°,60°,90°,145x100°,Type V

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80


Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    260x350x174mm

  • Fixture Weight

    5.0Kg

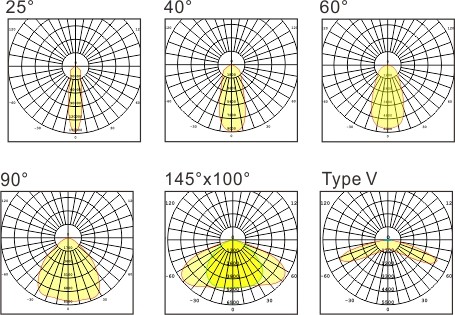

Photometric Specifications

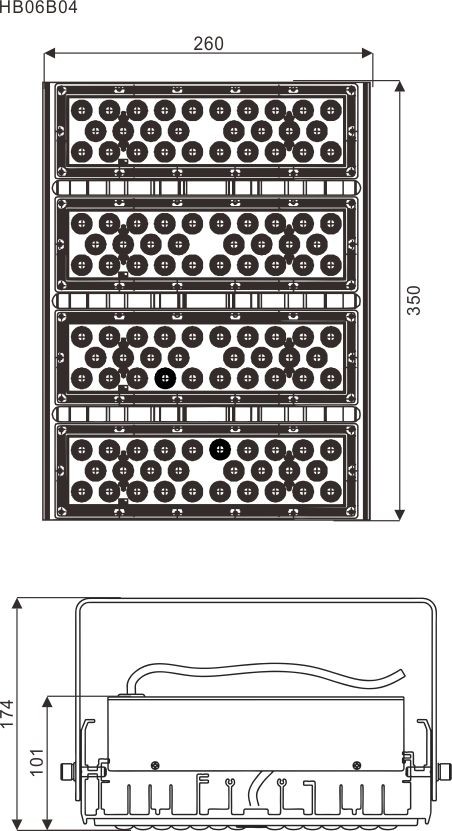

Dimension
