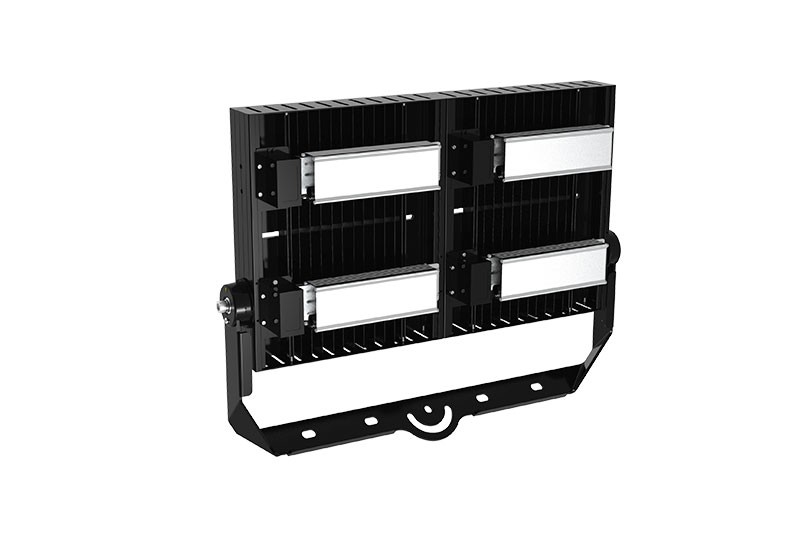

LED Stadium Light

V1904

Main features:

V19 LED stadium lamp is a die-cast aluminum heat sink design product,with high efficiency LED,various of beam angle for different professional sports court lighting application.


✔️270° adjustable bracket

✔️10°,15°,24°,36°,60°,90°,30x45°,G50°

✔️Integrated module design

✔️New Cost effective design

✔️640W-800W power range

✔️5 Years Warranty



     IK10

    IP66

     years

    >Ra70

    800W

    125-165lm/w



LED Lighting Controls

Product parameters

Electrical Specifications

  • Nominal Wattage

    800W

  • Lumen Efficiency

    120Lm/w(10/15°)&160Lm/w(24/36/60/90/30X45°)

  • Nominal Voltage

    AC 100-277V, 50/60Hz

  • Beam Angle

    10°,15°,24°,36°,60°,90°,30X45°,G50°

  • Optimal Operating Temperature

    -40°C to +50°C

  • Driver Efficiency

    > 90%

  • CRI

    Ra>70/Ra>80

Mechanical Specifications

  • Ratings

    IP66 | IK10

  • Lumen Maintenance

    72,000 hours - L70(9K)

  • Heat Radiator

    Aluminum alloy

  • Lens

    PC

  • Fixture Dimension

    724x555x113mm

  • Fixture Weight

    16.2Kg


Photometric Specifications


Dimension
